Sensor-Knock 1 (2.4L) (D1534)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 04604512

Part Description: Not Available

Connector No: D1534

Option: 2.4L

Repair Kit Part Number: 05013946AA

Cavity Count: 2

Fig 1: Sensor-Knock 1 Connector End View (2.4L)

GCWD1024548

Courtesy of CHRYSLER

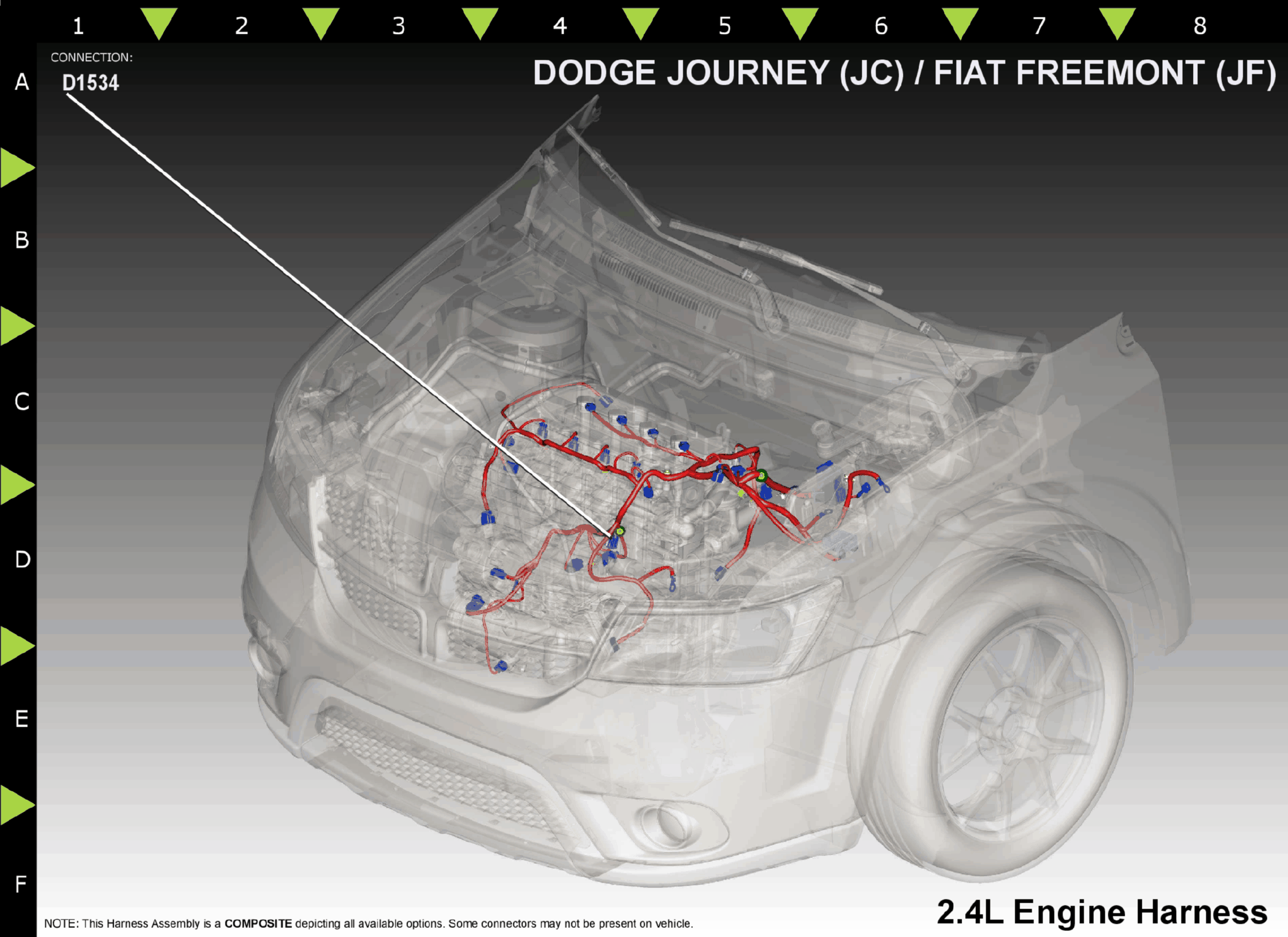

Fig 2: Sensor-Knock 1 Component Location (2.4L)

GCWD1188483

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

K42

DB/YL

18

KS 1 SIGNAL

N/A

2

K942

BR/LG

18

KS 1 RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
