Sensor-Intelligent Battery C1 (D2550A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 1-967644-1

Part Description: INSULATOR

Connector No: D2550A

Option: Standard

Repair Kit Part Number: 05183447AA

Cavity Count: 2

Fig 1: Sensor-Intelligent Battery C1 Connector End View

Courtesy of CHRYSLER

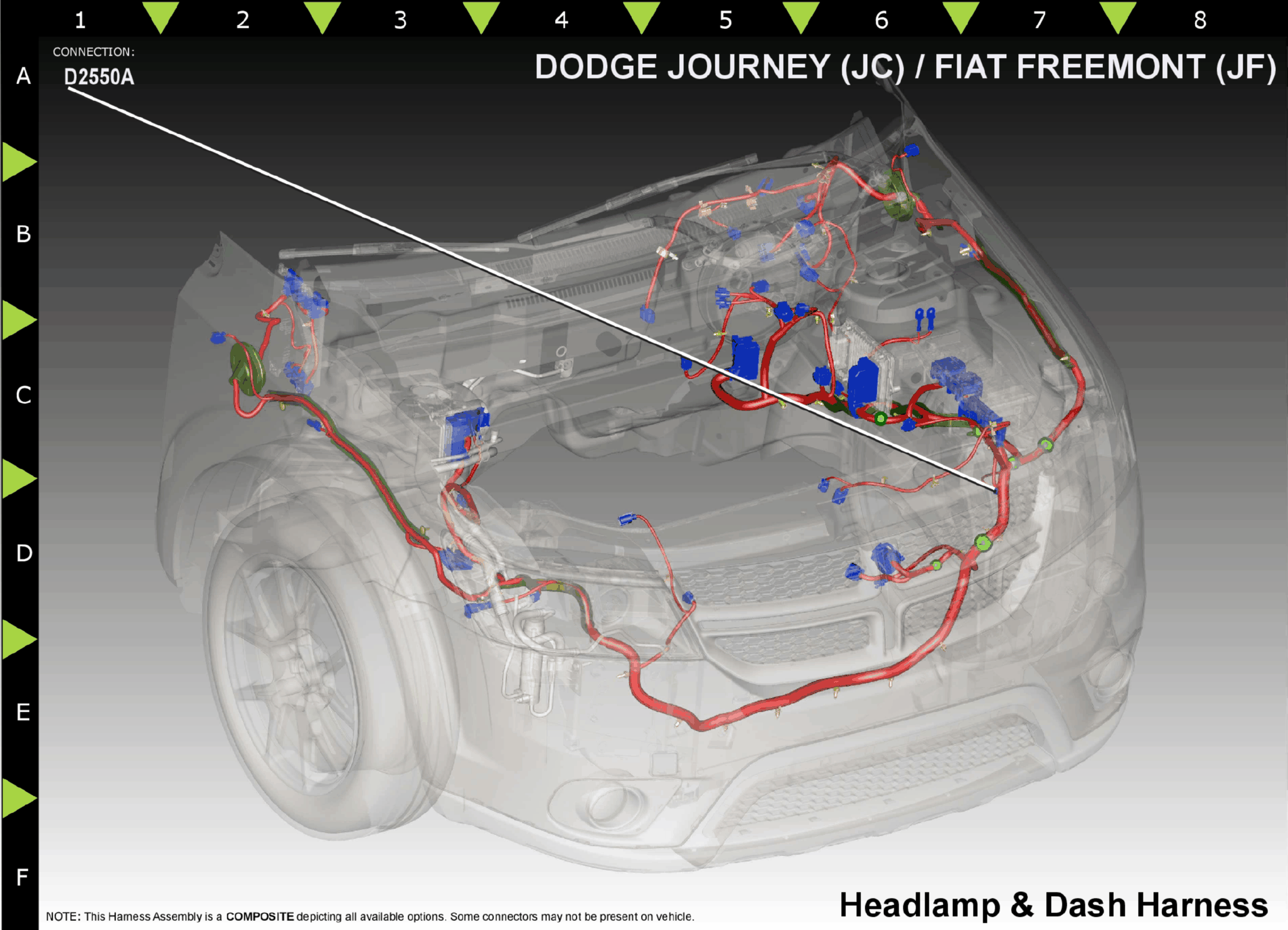

Fig 2: Sensor-Intelligent Battery C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D401

LIN BUS 1

N/A

A916

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
