Sensor-Intake Air Temperature (D1503A)

Harness-Family: Engine

Color: GRAY

Gender: FEMALE

Part Number: 184002-1

Part Description: INS 2/W AMP SENSOR TYPE B

Connector No: D1503A

Option: Standard

Repair Kit Part Number: 05014003AA

Cavity Count: 2

Fig 1: Sensor-Intake Air Temperature Connector End View

Courtesy of CHRYSLER

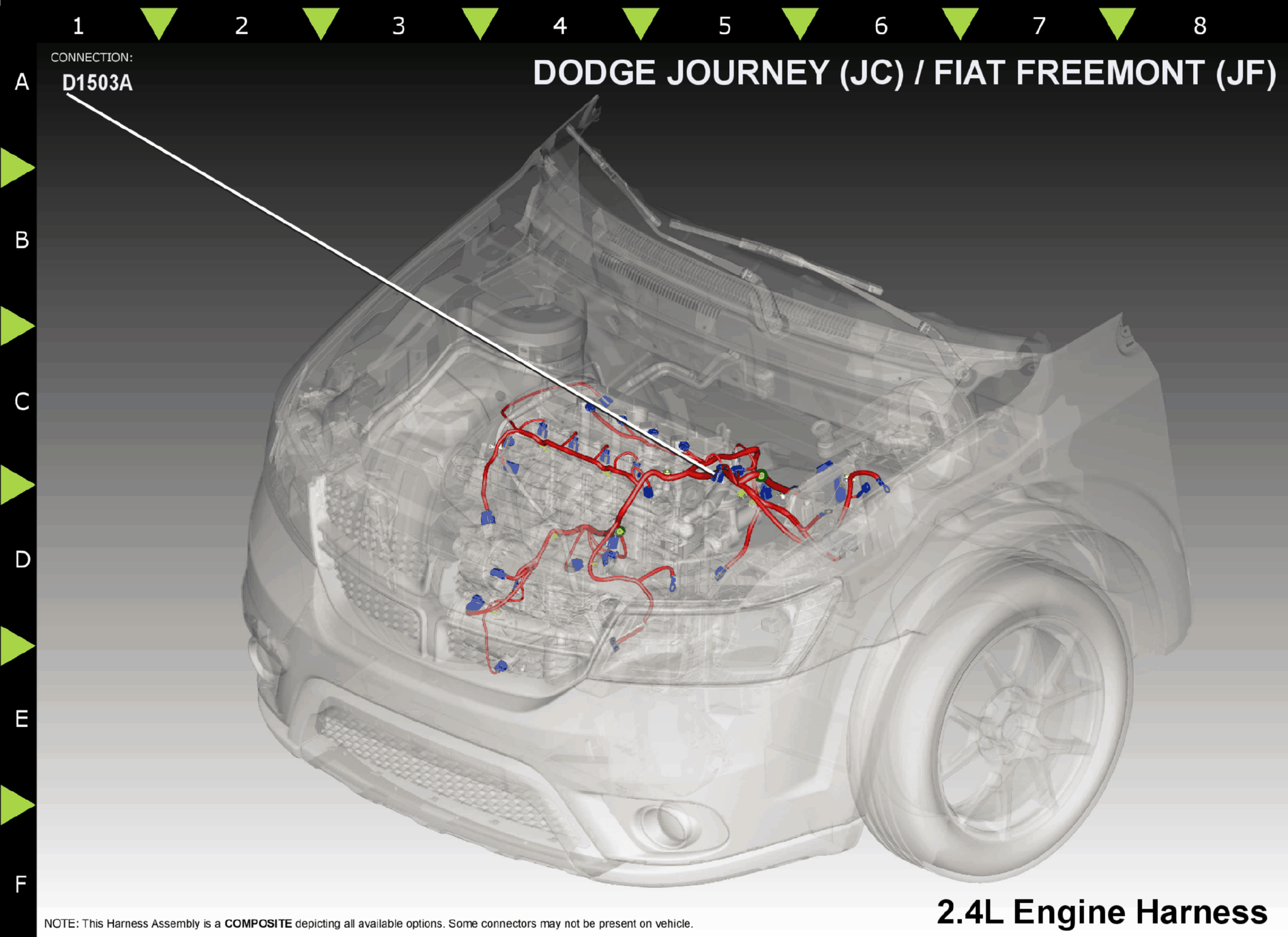

Fig 2: Sensor-Intake Air Temperature Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K21

DB/LG

IAT SIGNAL

N/A

K900

DB/DG

SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
