Sensor-Input Speed (D1568C)

Harness-Family: Transmission

Color: BLACK

Gender: FEMALE

Part Number: 184000-1

Part Description: SEALED SENSOR CONNECTOR

Connector No: D1568C

Option: Standard

Repair Kit Part Number: 05014002AA

Cavity Count: 2

Fig 1: Sensor-Input Speed Connector End View

GCWD1006382

Courtesy of CHRYSLER

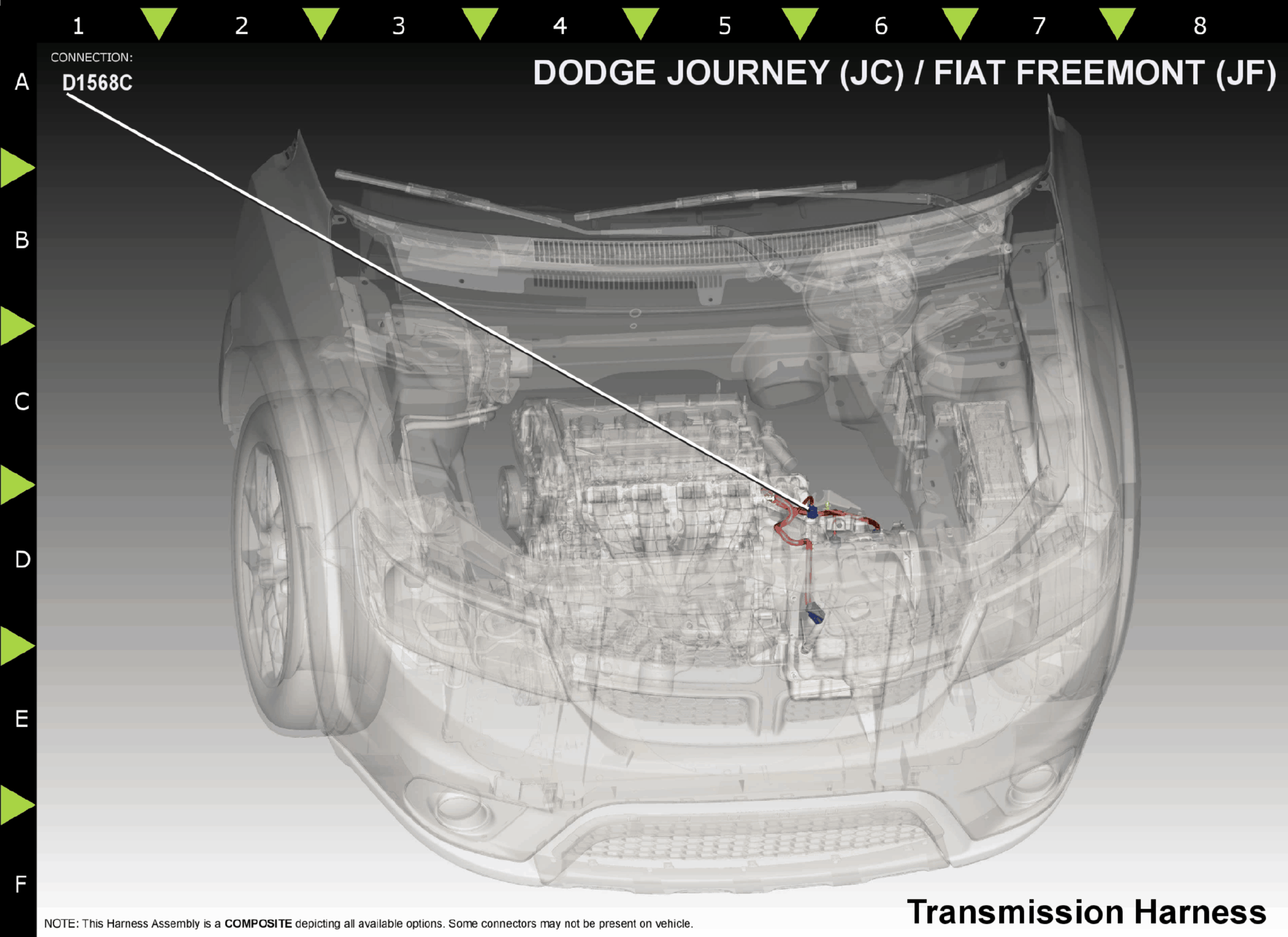

Fig 2: Sensor-Input Speed Component Location

GCWD1188172

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

T52

DG/OR

18

INPUT SPEED SIGNAL

N/A

2

T13

DG/VT

18

SPEED SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
