Sensor-In Car Temperature (D2676B)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 13543929

Part Description: MTS 0.64 UNSEALED Female CONNECTOR

Connector No: D2676B

Option: Standard

Repair Kit Part Number: 68080566AA

Cavity Count: 4

Fig 1: Sensor-In Car Temperature Connector End View

Courtesy of CHRYSLER

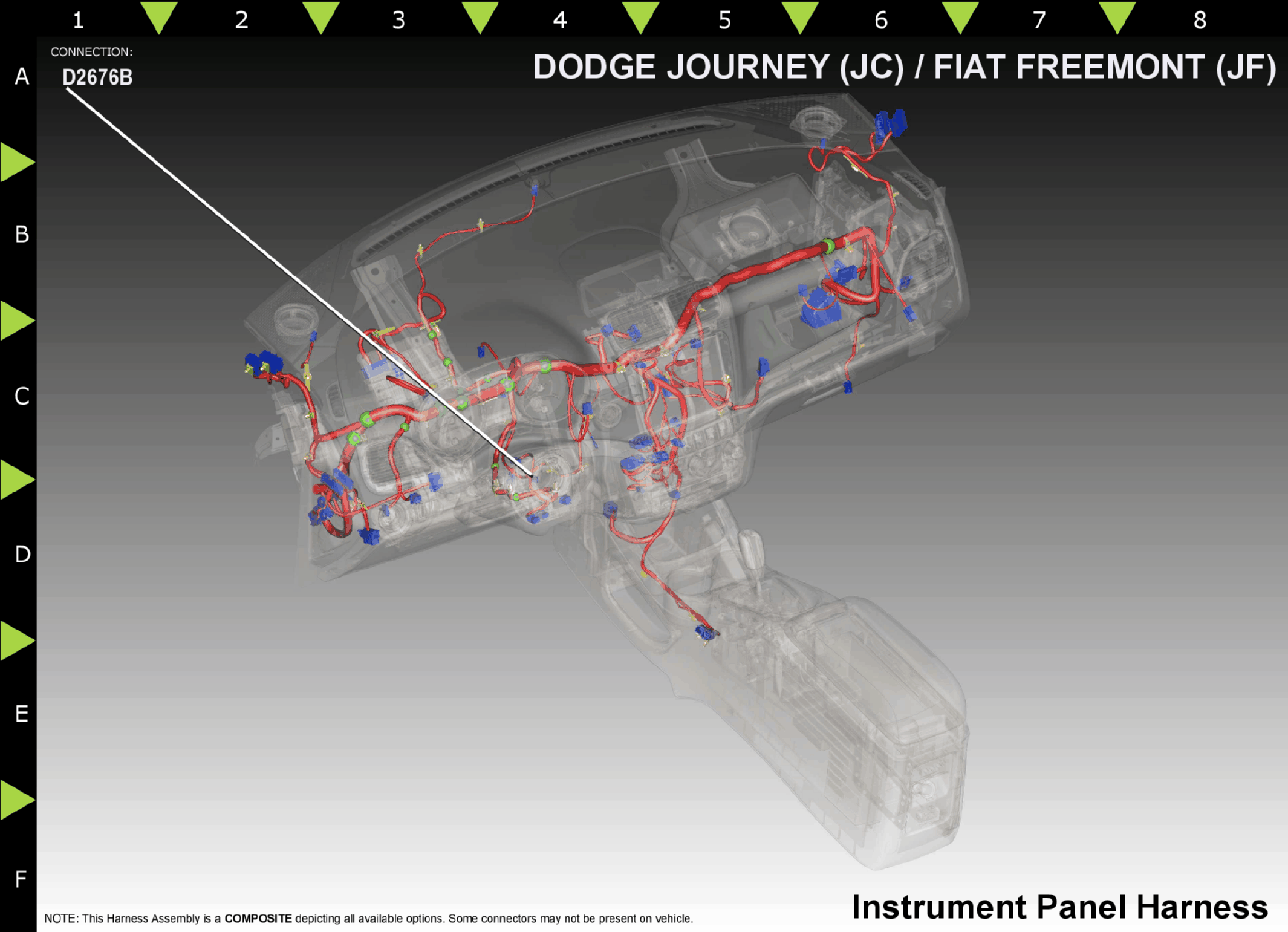

Fig 2: Sensor-In Car Temperature Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C36

LB/BR

SNSR IN CAR TEMP SIG

N/A

C37

LB/OR

SNSR IN CAR TEMP RTN

N/A

F925

PK/YL

FUSED IGNITION RUN CONTROL OUTPUT

N/A

Z907

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
