Sensor-Engine Oil Pressure (D1543)

Harness-Family: Sensor_Jumper

Color: BLACK

Gender: FEMALE

Part Number: 54200308N

Part Description: APEX CONNECTOR W/O CPA

Connector No: D1543

Option: Standard

Repair Kit Part Number: 05014007AA

Cavity Count: 3

Fig 1: Sensor-Engine Oil Pressure Connector End View

Courtesy of CHRYSLER

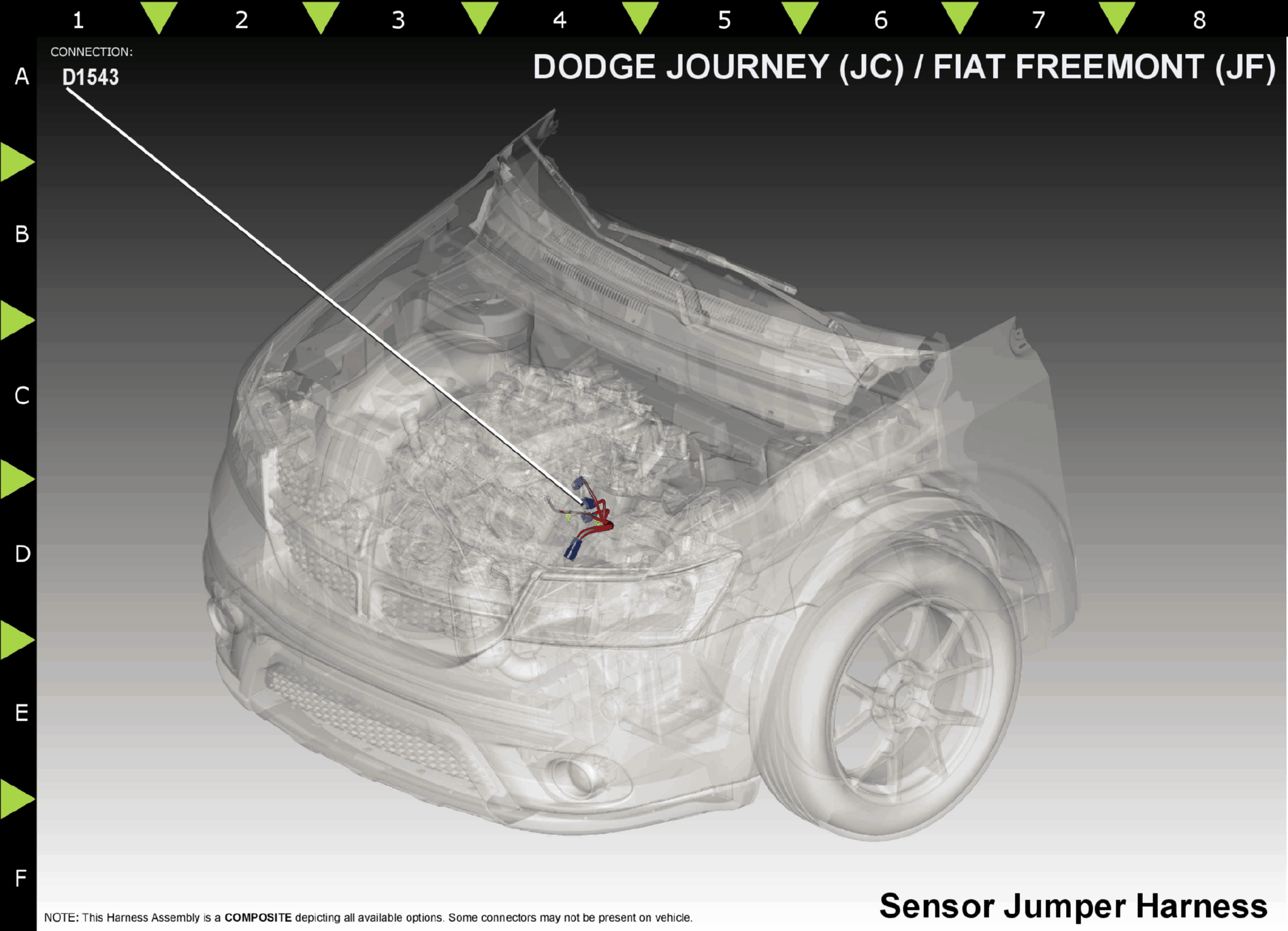

Fig 2: Sensor-Engine Oil Pressure Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

VT/GY

OIL PRESSURE SIGNAL

N/A

K900

DB/DG

SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
