Module-Occupant Restraint Controller C2A (D3834C)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 1534729-1

Part Description: MQS SOCKET HOUSING 12 POS.

Connector No: D3834C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 12

Fig 1: Module-Occupant Restraint Controller C2a Connector End View

Courtesy of CHRYSLER

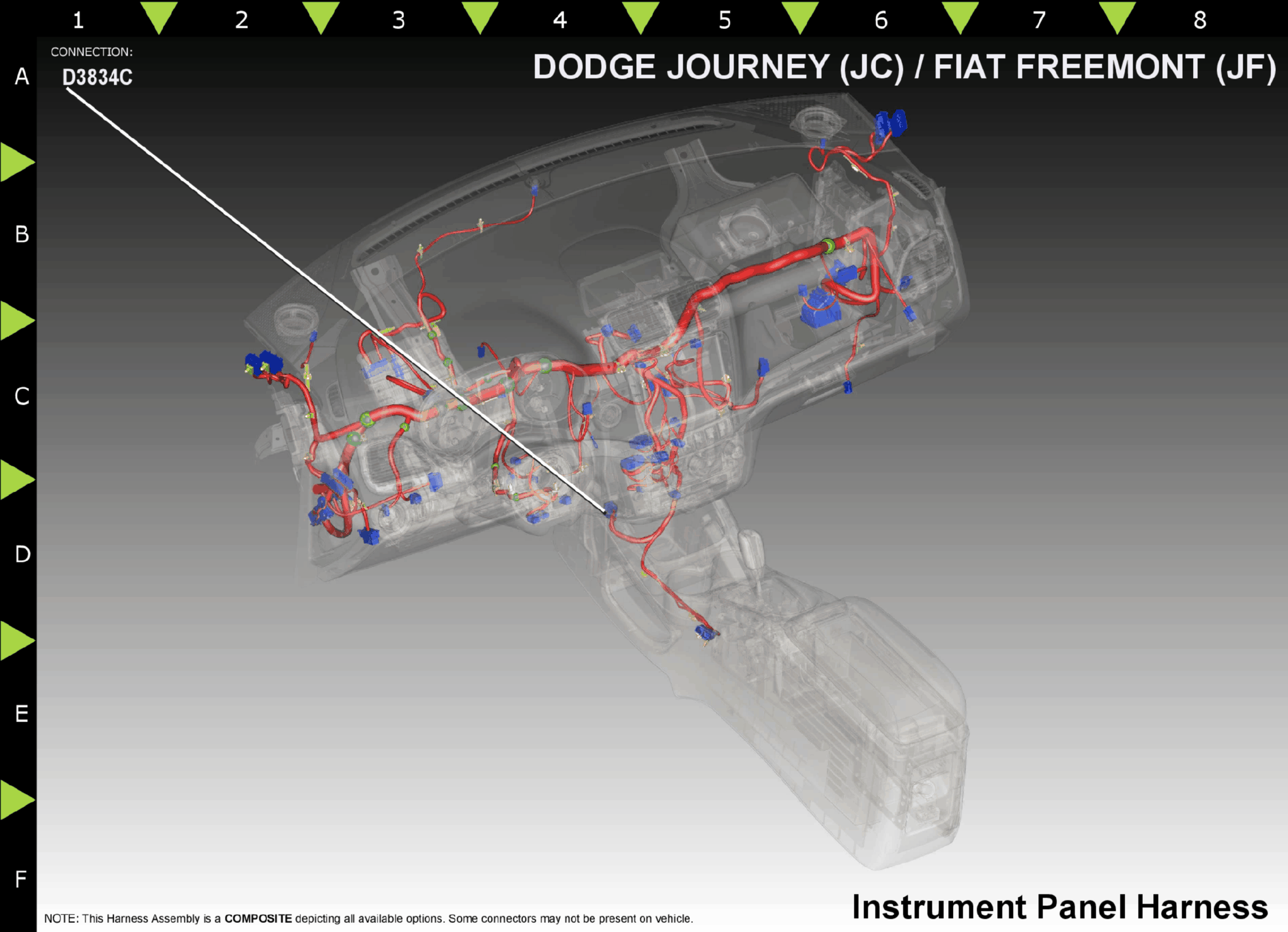

Fig 2: Module-Occupant Restraint Controller C2a Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z917

GROUND

N/A

D12

CAN C (-)

N/A

D11

YL/DB

CAN C (+)

N/A

F945

PK/LG

IGNITION RUN/START CONTROL OUTPUT

N/A

F929

PK/YL

FUSED IGNITION SWITCH OUTPUT (RUN)

N/A

⁽¹⁾	Pins not listed are not used for this connector
