Module-Door-Driver C4 (D3818D)

Harness-Family: Door_Front_Left

Color: VIOLET

Gender: FEMALE

Part Number: 4-929172-1

Part Description: MQS AND MCP SOCKET HOUSING/COVER

Connector No: D3818D

Option: Standard

Repair Kit Part Number: 68156142AA

Cavity Count: 5

Fig 1: Module-Door-Driver C4 Connector End View

Courtesy of CHRYSLER

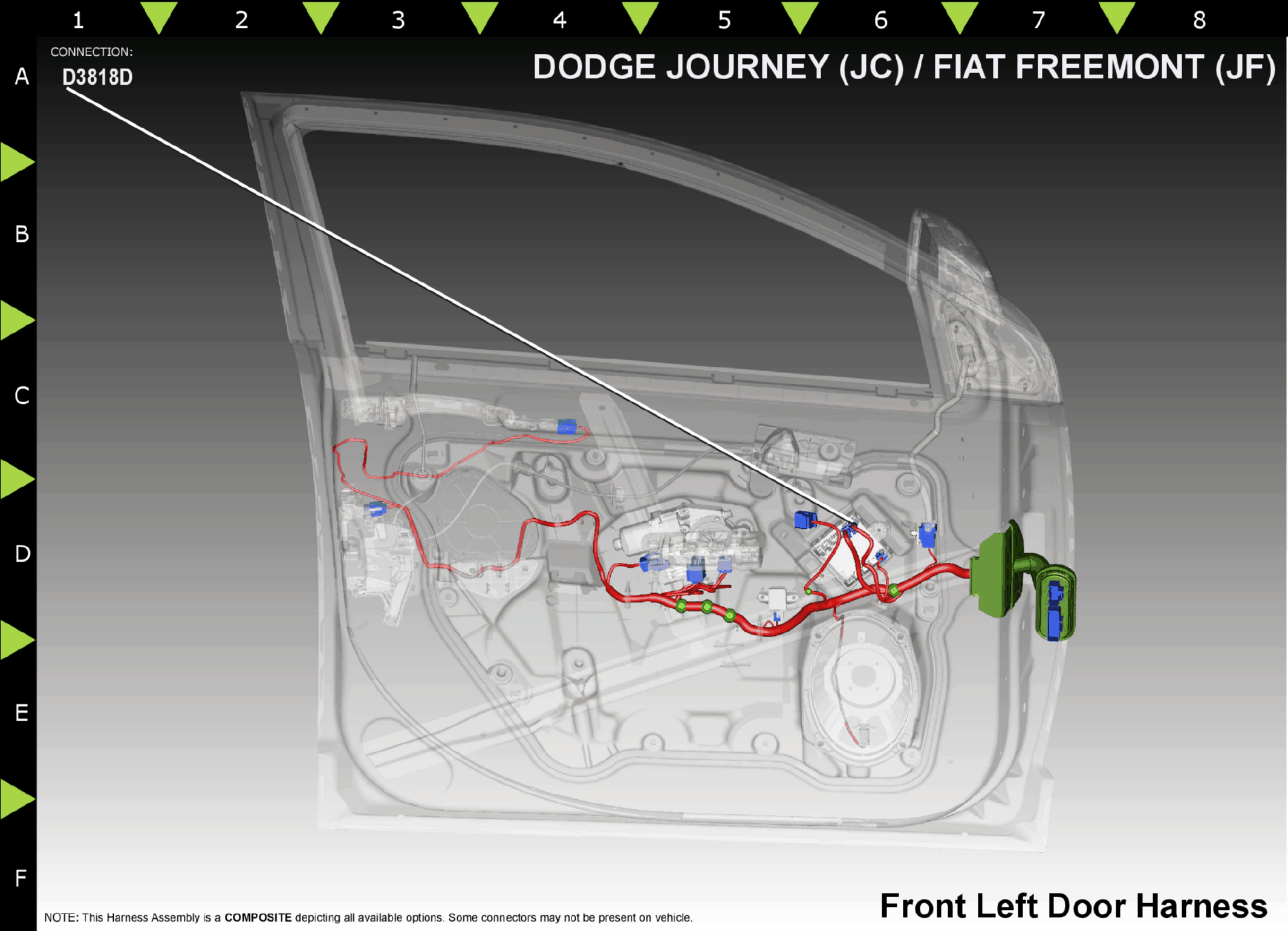

Fig 2: Module-Door-Driver C4 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Q301

OR/WT

DRIVER WINDOW HALL SENSOR A SIGNAL

N/A

Q305

DRIVER WINDOW HALL SENSOR SUPPLY

N/A

Q991

BK/OR

DRIVER WINDOW HALL SENSOR RETURN

N/A

Q11

OR/LG

DRIVER WINDOW DRIVER (UP)

N/A

Q21

OR/WT

DRIVER WINDOW DRIVER (DOWN)

N/A

⁽¹⁾	Pins not listed are not used for this connector
