Module-Body Control C7/G (D3806G)

Harness-Family: IP

Color: BLUE

Gender: FEMALE

Part Number: 13687849

Part Description: INNER HOUSING BLACK

Connector No: D3806G

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 24

Fig 1: Module-Body Control C7/g Connector End View
GCWD1006465Courtesy of CHRYSLER

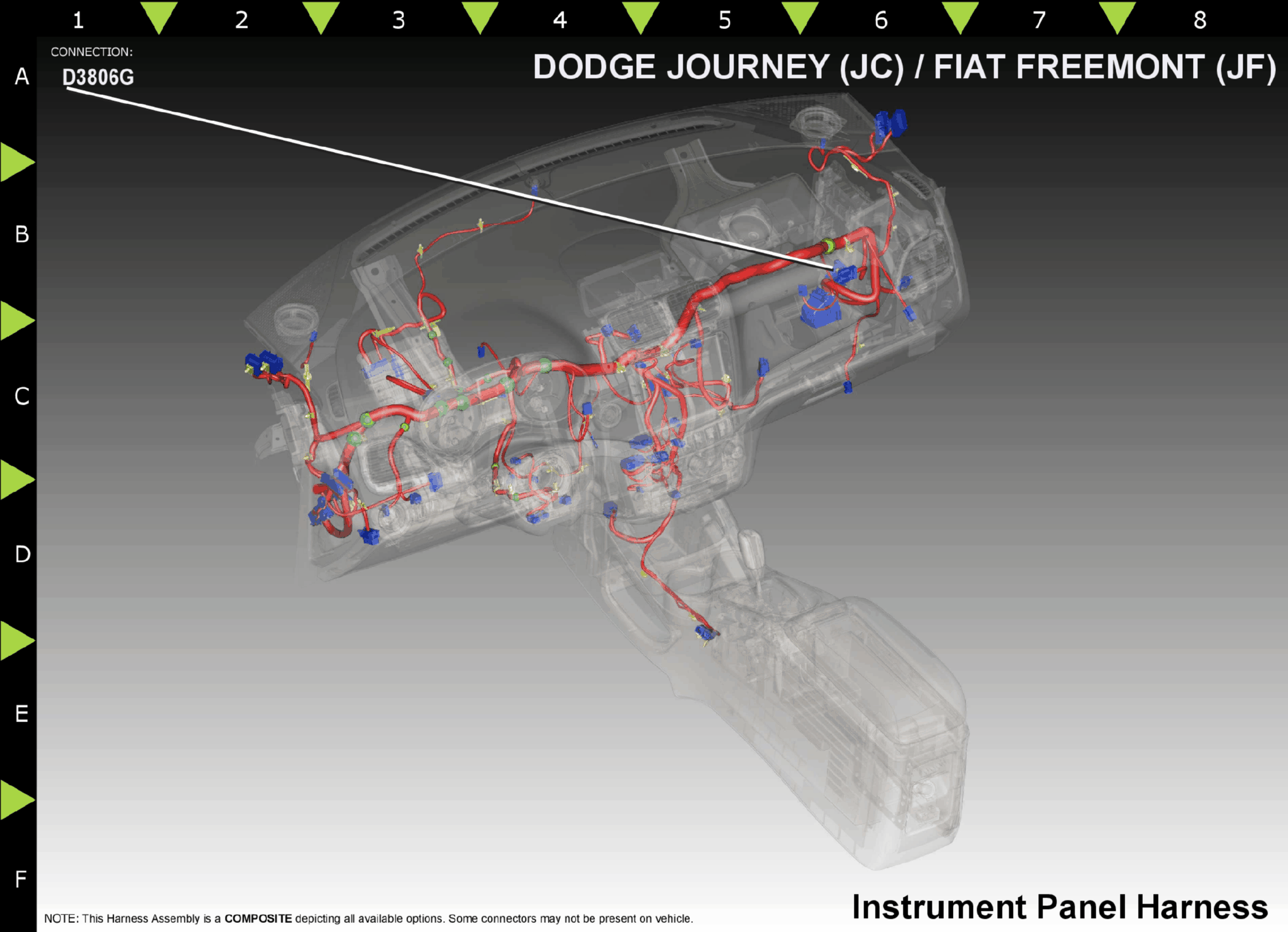

Fig 2: Module-Body Control C7/g Component Location
GCWD1188132Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
4 D145 WT/LG 22 CAN IHS (+) N/A
5 D146 WT 22 CAN IHS (-) N/A
6 D402 OR/VT 22 LIN BUS CBC 2 N/A
7 D401 OR 22 LIN BUS 1 N/A
9 E3 OR/YL 20 PANEL LAMPS DIMMER SWITCH MUX N/A
13 M27 YL/LB 20 READING LAMPS DRIVER N/A
14 M11 YL/VT 20 COURTESY LAMPS DRIVER N/A
15 G38 GY 20 UGDO ENABLE CONTROL CIRCUIT N/A
17 L900 WT/YL 22 HEADLAMP SWITCH MUX RETURN N/A
19 E2 OR/BR 20 PANEL LAMPS DRIVER N/A
20 L307 WT/BR 22 HEADLAMP SWITCH MUX N/A
21 L91 WT/DB 20 HAZARD SWITCH SENSE N/A
22 G84 VT/GY 22 VTA WARNING INDICATOR N/A
24 M5 WT/LG 20 FOOTWELL LAMP FEED FT LT N/A
(1) Pins not listed are not used for this connector
