Latch-Door-Passenger (THATCHAM) (D6615A)

Harness-Family: Door_Front_Right

Color: BLACK

Gender: FEMALE

Part Number: 805-031-501

Part Description: 8POL MLK KUPPLUNG ELA 2 REIHIG

Connector No: D6615A

Option: THATCHAM

Repair Kit Part Number: Not Available

Cavity Count: 8

Fig 1: Latch-Door-Passenger Connector End View (Thatcham)

Courtesy of CHRYSLER

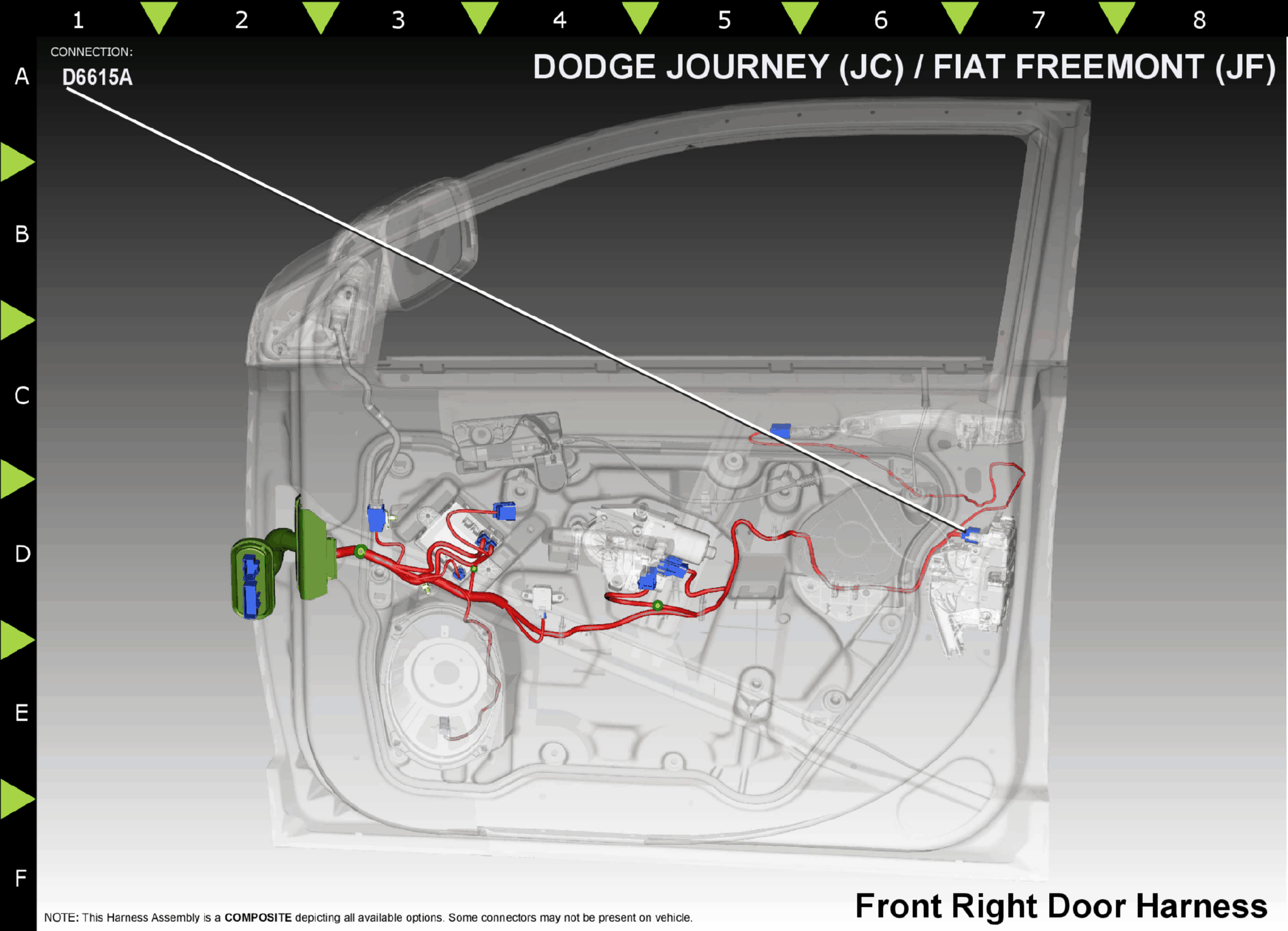

Fig 2: Latch-Door-Passenger Component Location (Thatcham)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P237

DG/TN

SECONDARY UNLOCK DRIVER

N/A

P235

LG/TN

SECONDARY LOCK DRIVER

N/A

P292

VT/LG

PASSENGER DOORS UNLOCK RELAY CONTROL

N/A

P777

LG/DG

DOOR LOCK RELAY CONTROL

N/A

G74

VT/WT

PASSENGER DOOR AJAR SWITCH SENSE

N/A

Z921

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
