Latch-Door-Liftgate C2 (D6614B)

Harness-Family: Liftgate

Color: BLACK

Gender: FEMALE

Part Number: 13707345

Part Description: Not Available

Connector No: D6614B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Latch-Door-Liftgate C2 Connector End View

GCWD1082855

Courtesy of CHRYSLER

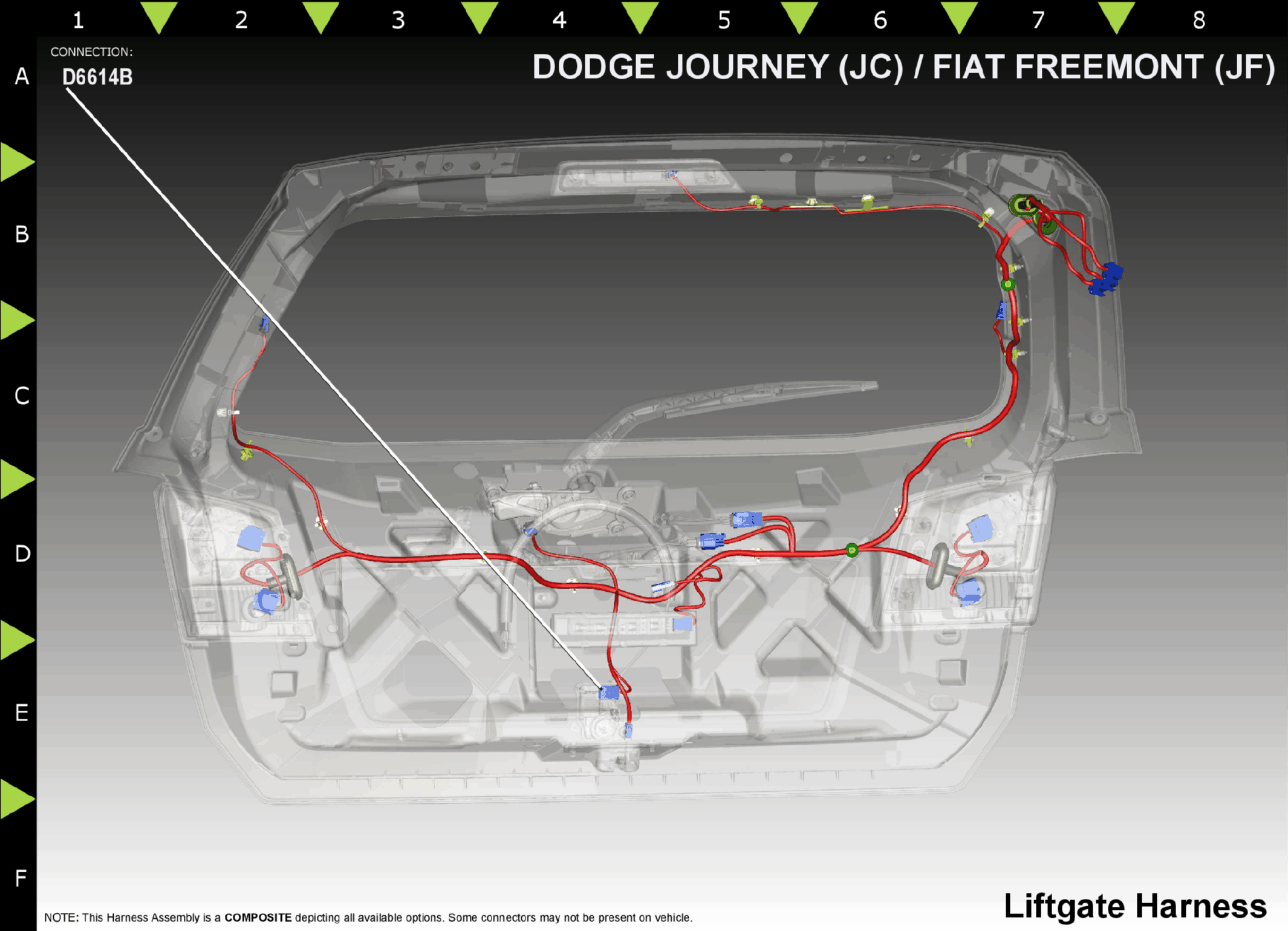

Fig 2: Latch-Door-Liftgate C2 Component Location

GCWD1188368

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

P777

LG/DG

18

DOOR LOCK RELAY CONTROL

N/A

3

P292

VT/LG

18

PASSENGER DOORS UNLOCK RELAY CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
