Lamp-Vanity-Left (Base) (D6651A)

Harness-Family: Headliner

Color: BLACK

Gender: FEMALE

Part Number: 12047662

Part Description: INSULATOR

Connector No: D6651A

Option: BASE

Repair Kit Part Number: 68272954AA

Cavity Count: 2

Fig 1: Lamp-Vanity-Left Connector End View (Base)

GCWD1006462

Courtesy of CHRYSLER

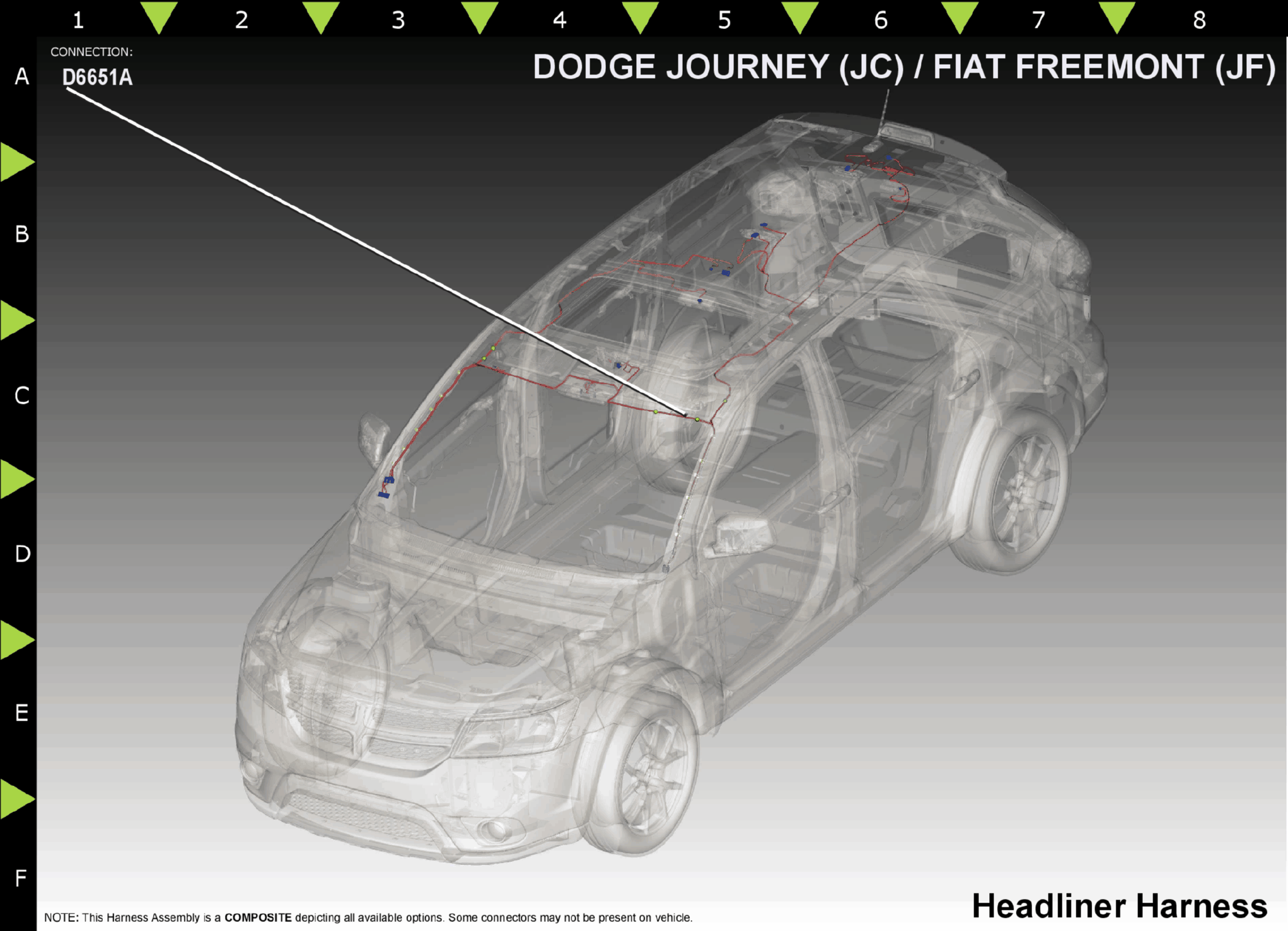

Fig 2: Lamp-Vanity-Left Component Location (Base)

GCWD1188140

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

M27

YL/LB

20

READING LAMPS DRIVER

N/A

2

Z906

BK

20

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
