Lamp-Tail/Stop/Turn-Right C2 (D4579B)

Harness-Family: Liftgate

Color: GREEN

Gender: FEMALE

Part Number: ZFJ-00702-UA

Part Description: Not Available

Connector No: D4579B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Lamp-Tail/Stop/Turn-Right C2 Connector End View

Courtesy of CHRYSLER

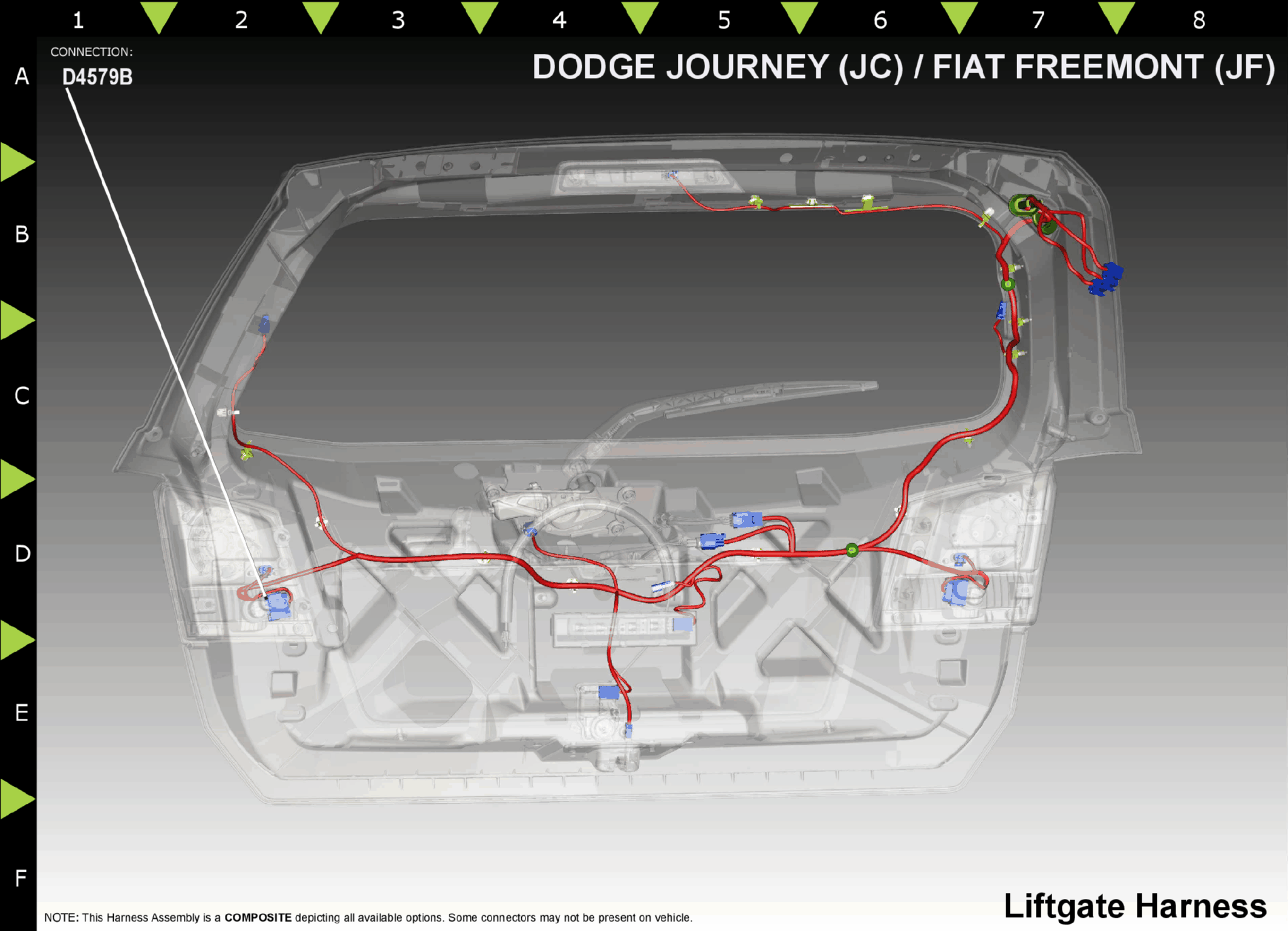

Fig 2: Lamp-Tail/Stop/Turn-Right C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z923

GROUND

N/A

L16

WT/OR

RIGHT BACKUP LAMP DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
