Lamp-Tail/Stop/Turn-Right C1 (D4579A)

Harness-Family: Liftgate

Color: BLACK

Gender: FEMALE

Part Number: 15491547

Part Description: Not Available

Connector No: D4579A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

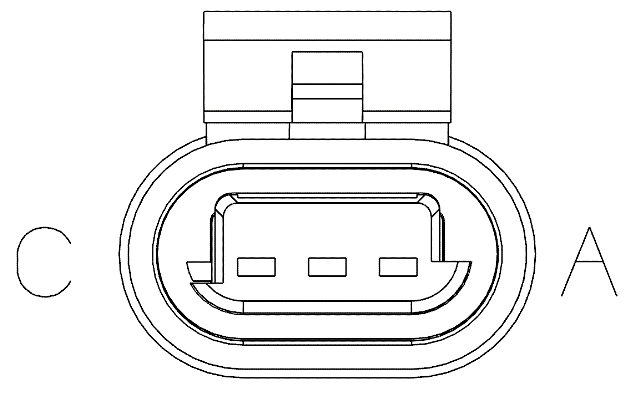

Fig 1: Lamp-Tail/Stop/Turn-Right C1 Connector End View

Courtesy of CHRYSLER

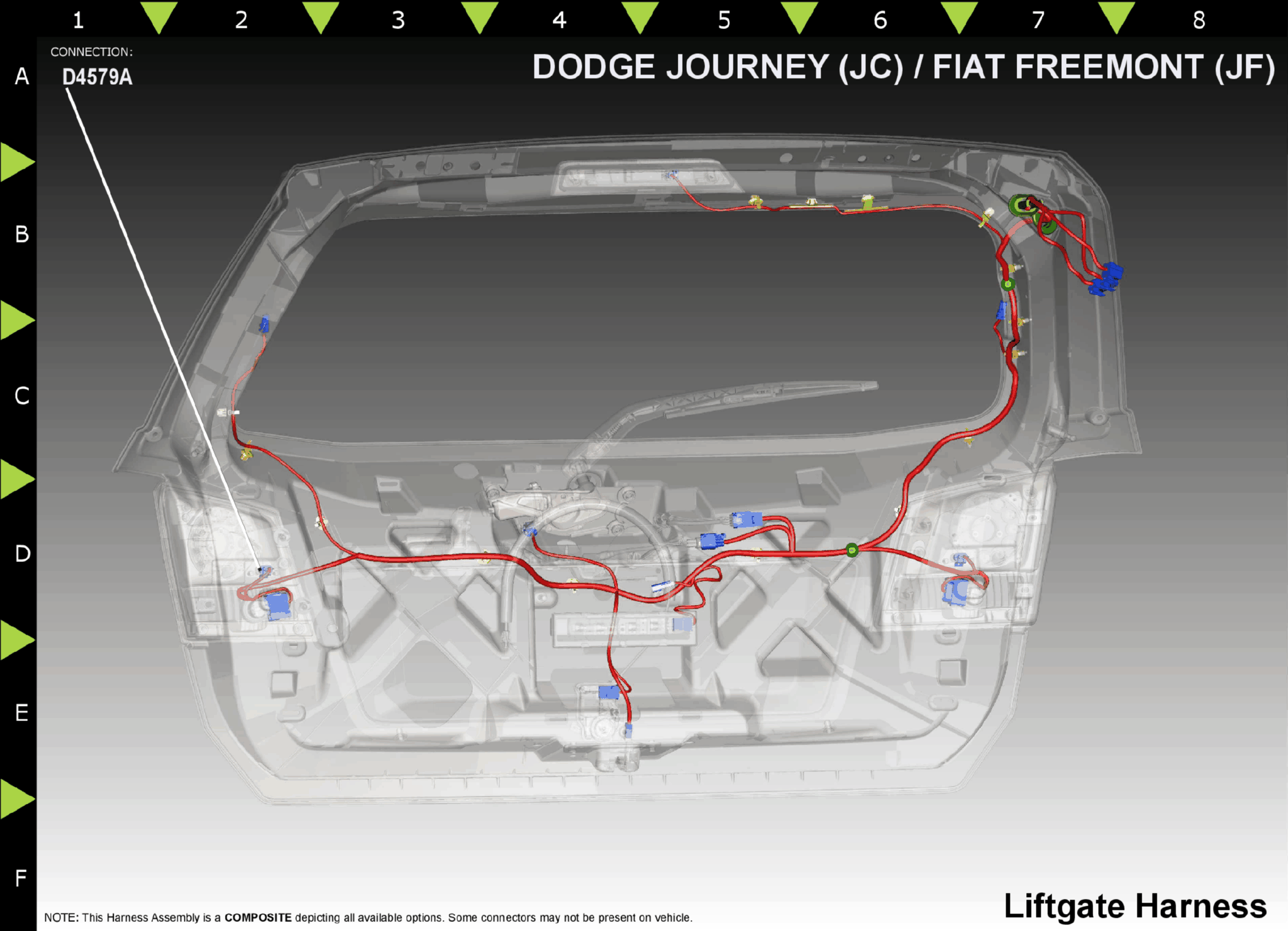

Fig 2: Lamp-Tail/Stop/Turn-Right C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L72

WT/OR

RIGHT REAR PARK LAMP DRIVER

N/A

Z911

BK/LB

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
