Lamp-Reading-Front 1 (D2699A)

Harness-Family: Headliner

Color: BLACK

Gender: MALE

Part Number: 70107-0002

Part Description: CONNECTOR A KEYWAY WITHOUT LATCH

Connector No: D2699A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Lamp-Reading-Front 1 Connector End View

Courtesy of CHRYSLER

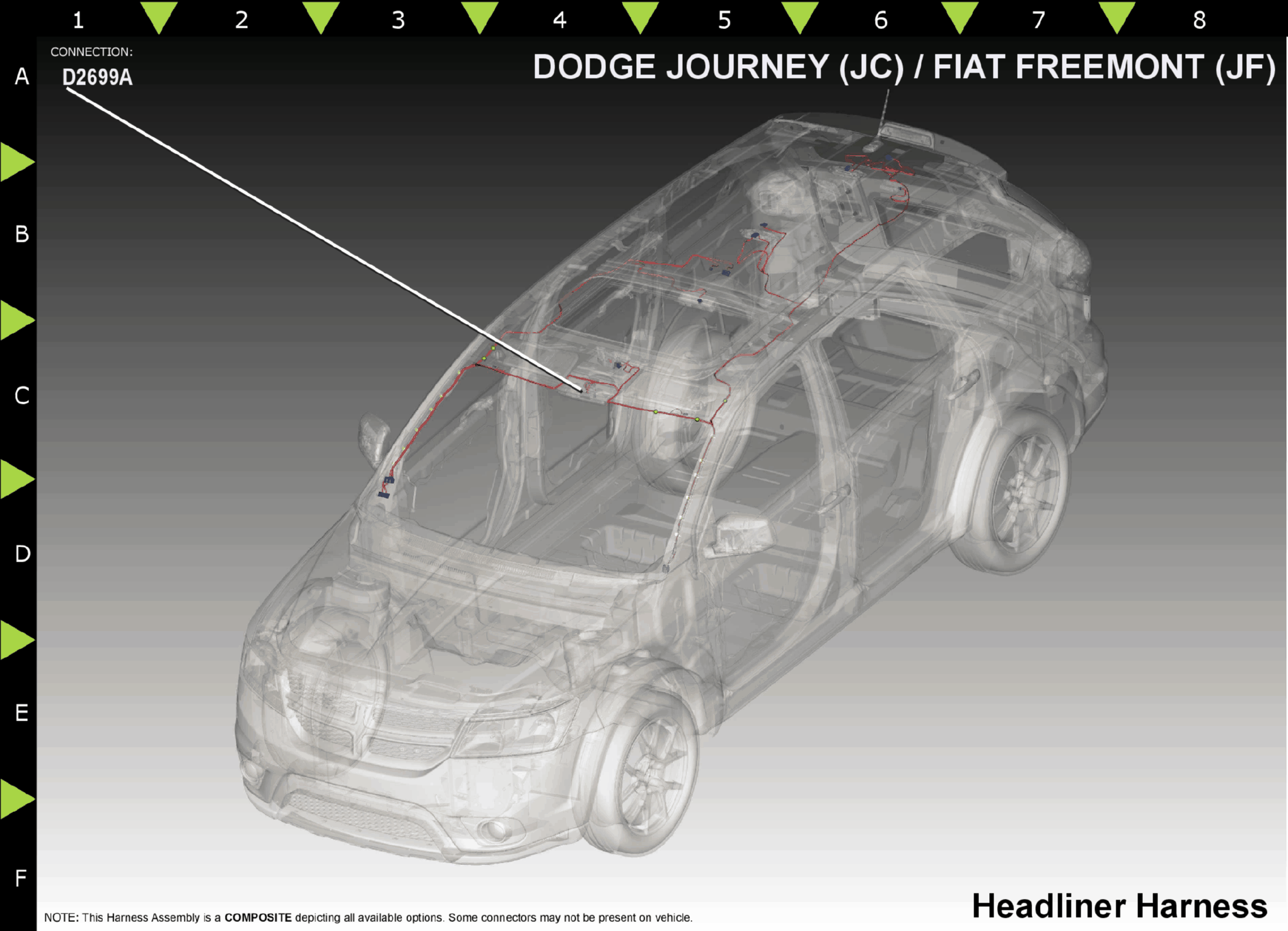

Fig 2: Lamp-Reading-Front 1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z906

GROUND

N/A

M11

YL/VT

COURTESY LAMPS DRIVER

N/A

M27

YL/LB

READING LAMPS DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
