Lamp-Overhead Rail-2ND Row 1 (D2425A)

Harness-Family: Headliner

Color: BLACK

Gender: FEMALE

Part Number: 12047781

Part Description: 3 WAY INSULATOR

Connector No: D2425A

Option: Standard

Repair Kit Part Number: 68057289AA

Cavity Count: 3

Fig 1: Lamp-Overhead Rail-2nd Row 1 Connector End View

Courtesy of CHRYSLER

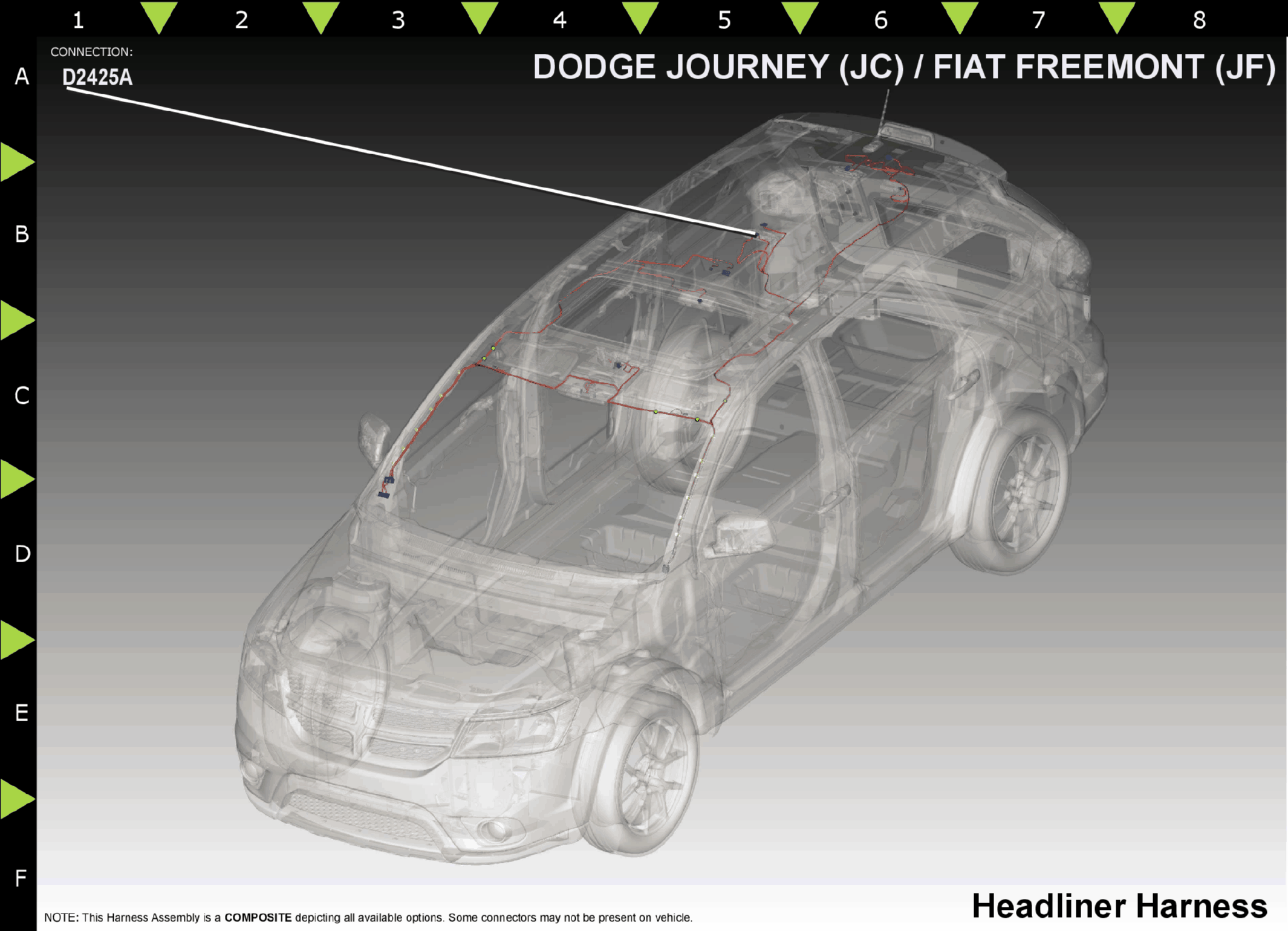

Fig 2: Lamp-Overhead Rail-2nd Row 1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

M27

YL/LB

READING LAMPS DRIVER

N/A

Z906

GROUND

N/A

M11

YL/VT

COURTESY LAMPS DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
