Lamp-Liftgate (D2587A)

Harness-Family: Liftgate

Color: GRAY

Gender: FEMALE

Part Number: 13578732

Part Description: GT FBT 2.8 CONNECTOR ASSEMBLY

Connector No: D2587A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Lamp-Liftgate Connector End View

GCWD1089599

Courtesy of CHRYSLER

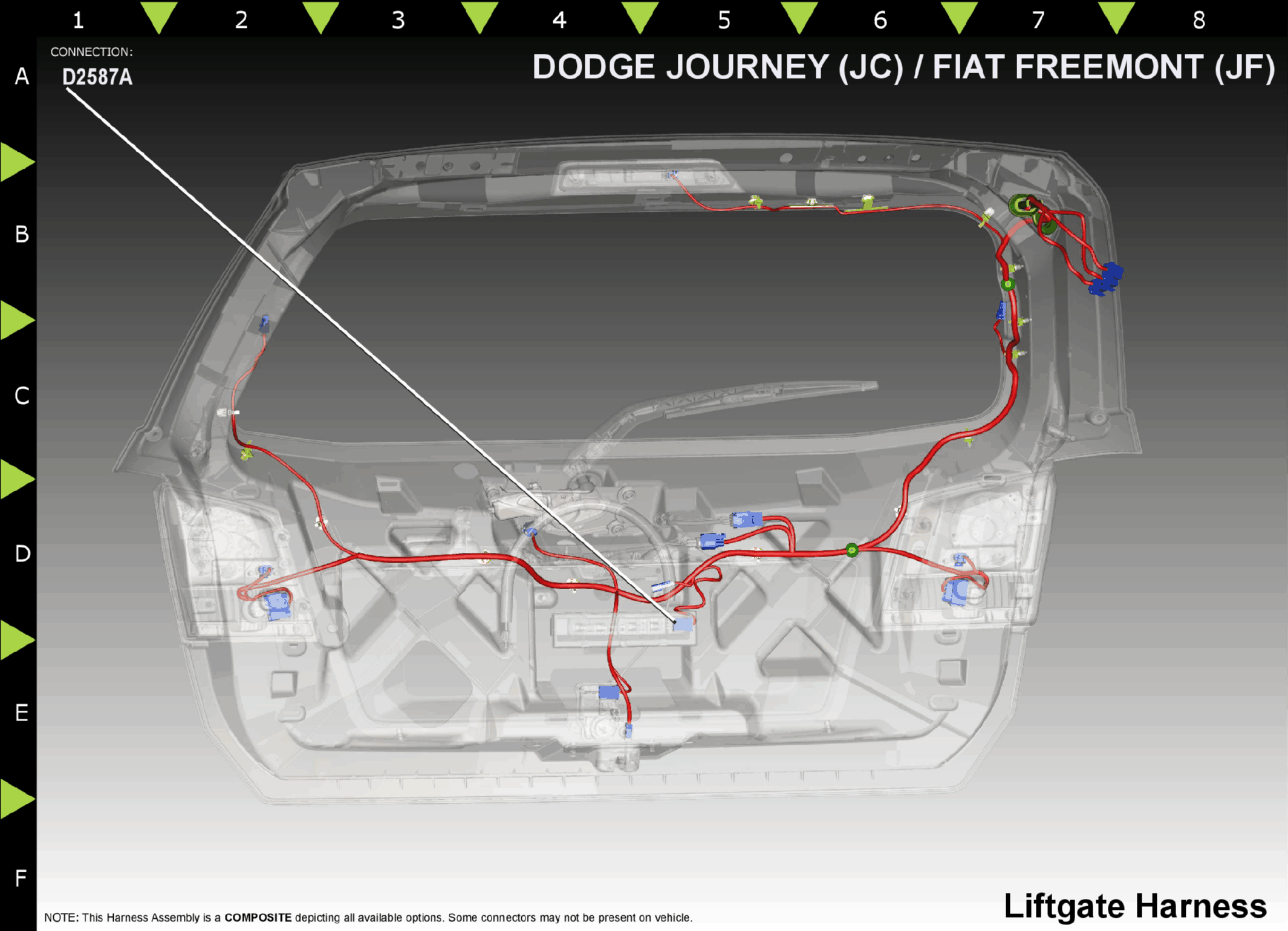

Fig 2: Lamp-Liftgate Component Location

GCWD1187915

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

Z911

BK/LB

20

GROUND

N/A

3

M11

YL/VT

20

COURTESY LAMPS DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
