Lamp-Glove Box (D4536A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 13593757

Part Description: GT FLEX BEAM TECHNOLOGY CONNECTOR ASM

Connector No: D4536A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Lamp-Glove Box Connector End View

Courtesy of CHRYSLER

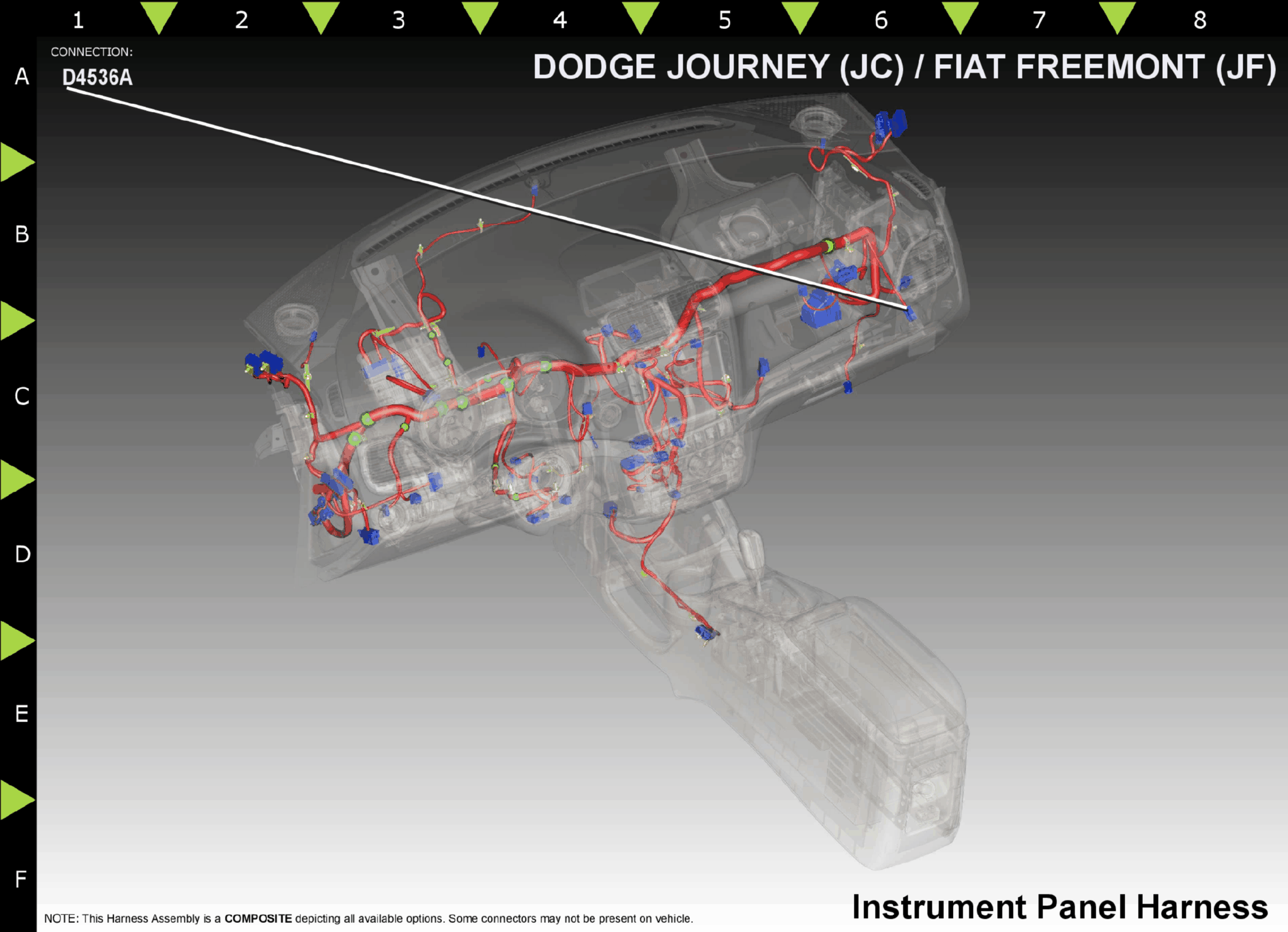

Fig 2: Lamp-Glove Box Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z907

GROUND

N/A

M27

YL/LB

READING LAMPS DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
