Lamp-Fog-Left Rear (D4534A)

Harness-Family: Fascia_Rear

Color:

Gender: MALE

Part Number: Yellow-2

Part Description: Not Available

Connector No: D4534A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

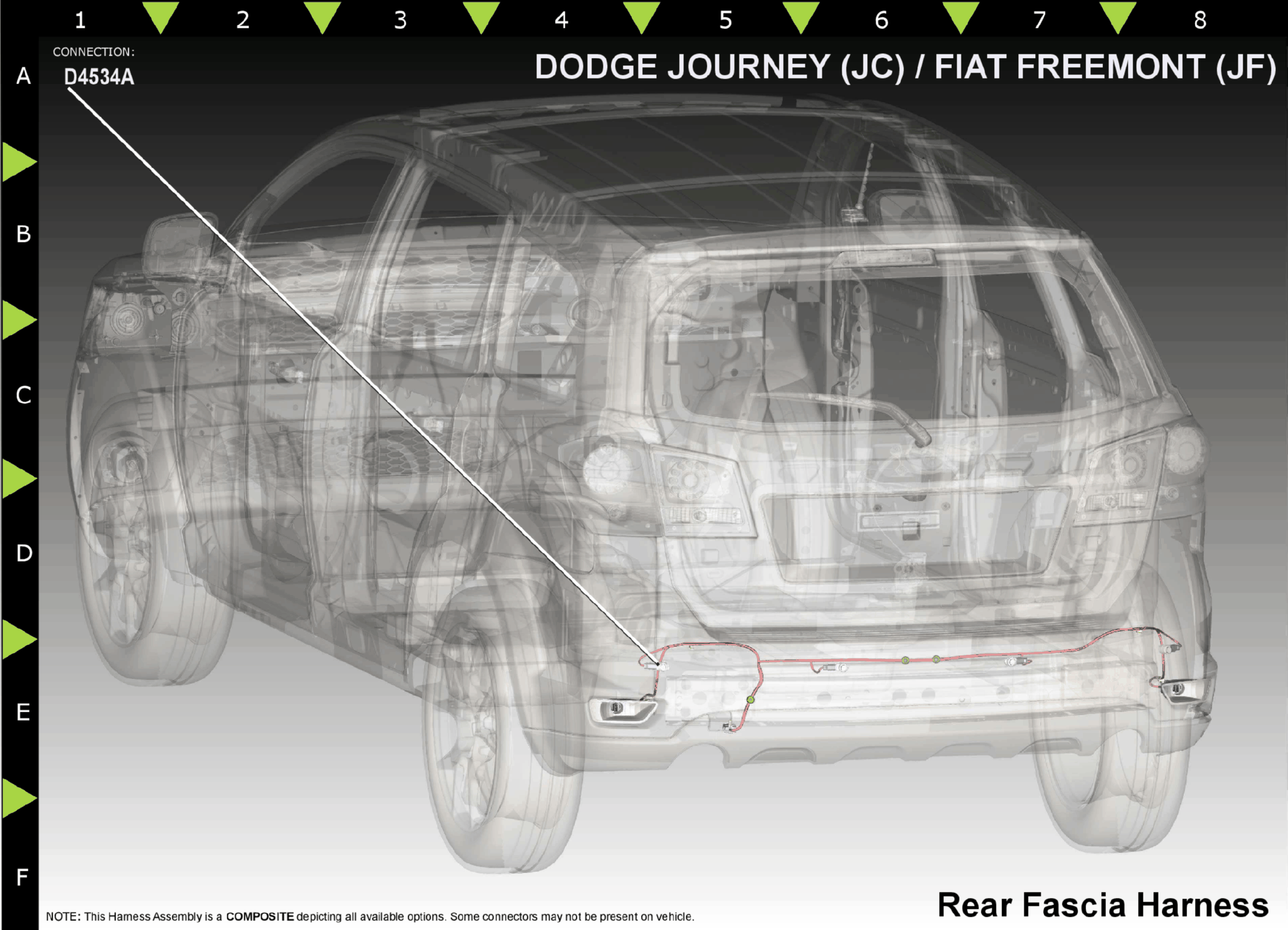

Fig 1: Lamp-Fog-Left Rear Component Location

GCWD1188075

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

L899

WT/OR

20

REAR FOG LAMP FEED

N/A

2

Z911

BK

20

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
