Lamp-Fog-Left Front (D4531A)

Harness-Family: Front_End_Lighting

Color: RUST

Gender: FEMALE

Part Number: 13547918

Part Description: TAXI ASM CONN F GT FBT 150 SLD

Connector No: D4531A

Option: Standard

Repair Kit Part Number: 68087933AA

Cavity Count: 2

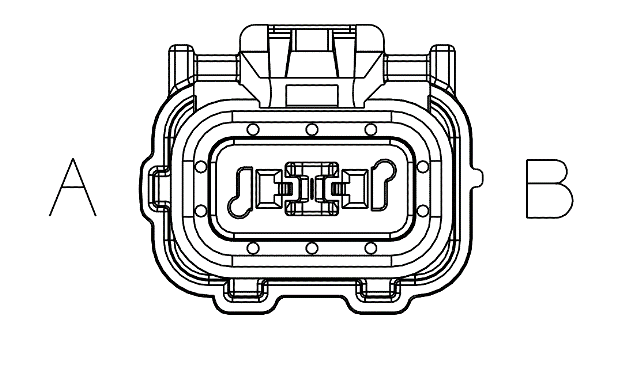

Fig 1: Lamp-Fog-Left Front Connector End View

GCWD1025375

Courtesy of CHRYSLER

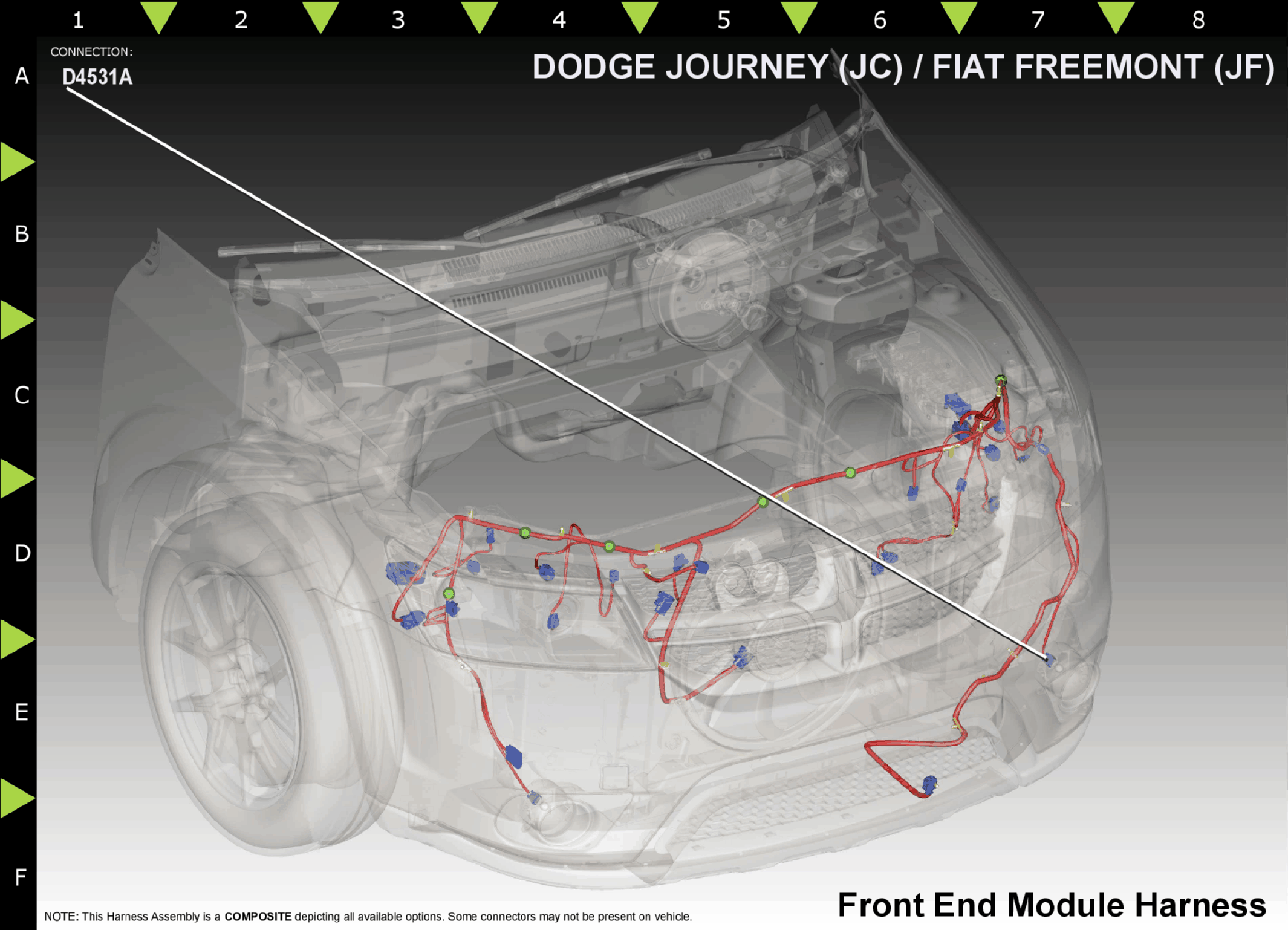

Fig 2: Lamp-Fog-Left Front Component Location

GCWD1188275

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

B

L89

WT/YL

20

LEFT FRONT FOG LAMP CONTROL

N/A

A

Z901

BK

20

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
