Lamp-Flashlight (D2431A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 13592117

Part Description: MICRO 64 UNSEALED Female CONNECTOR

Connector No: D2431A

Option: Standard

Repair Kit Part Number: 68137875AA

Cavity Count: 3

Fig 1: Lamp-Flashlight Connector End View

Courtesy of CHRYSLER

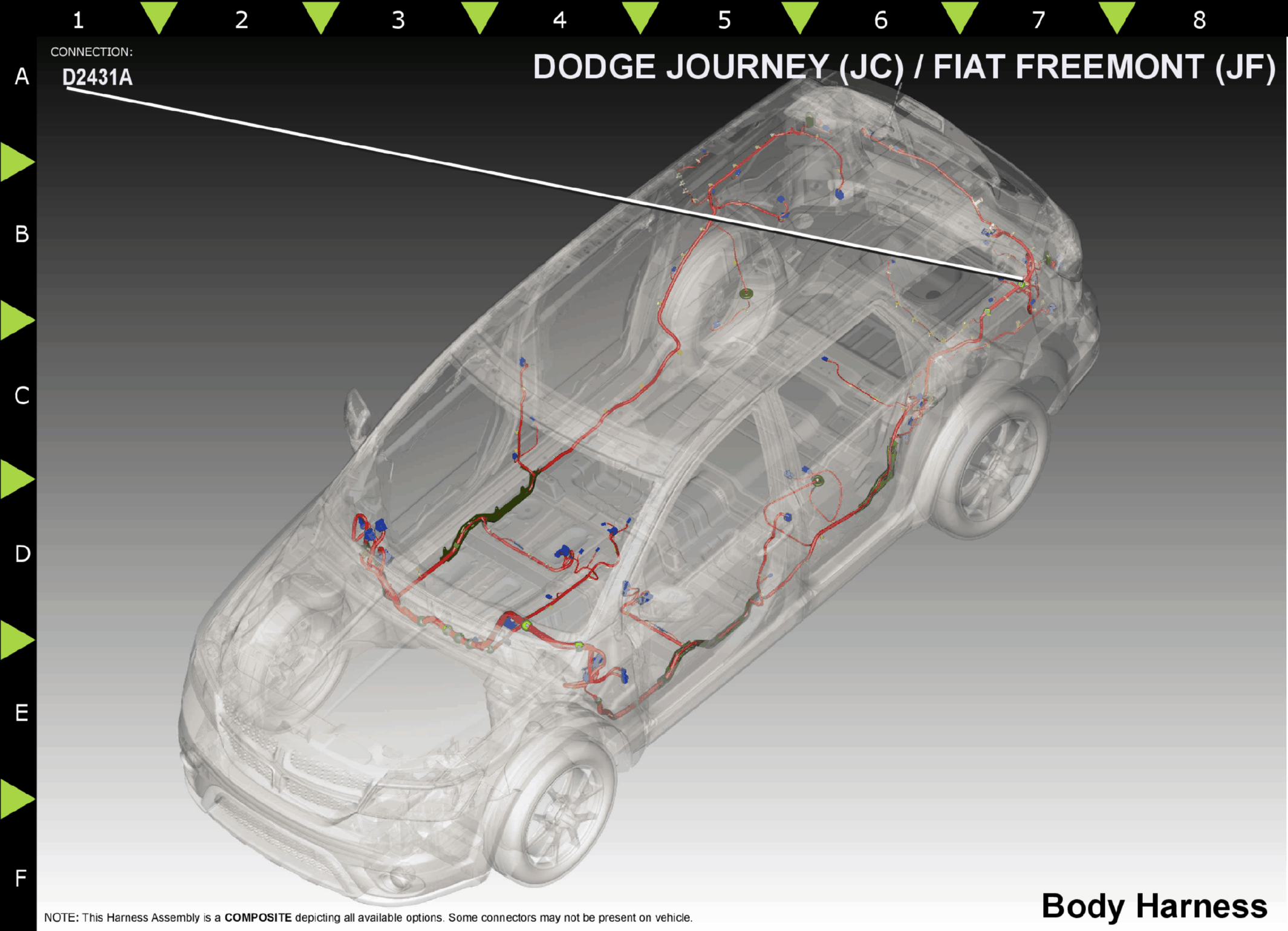

Fig 2: Lamp-Flashlight Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z911

BK/LB

GROUND

N/A

F924

PK/YL

RUN RELAY CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
