Lamp-Console-Center (D4508A)

Harness-Family: IP

Color: NATURAL

Gender: FEMALE

Part Number: 7283-5845

Part Description: 040-III CONNECTOR HOUSING SUB ASSEMBLY

Connector No: D4508A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Lamp-Console-Center Connector End View

Courtesy of CHRYSLER

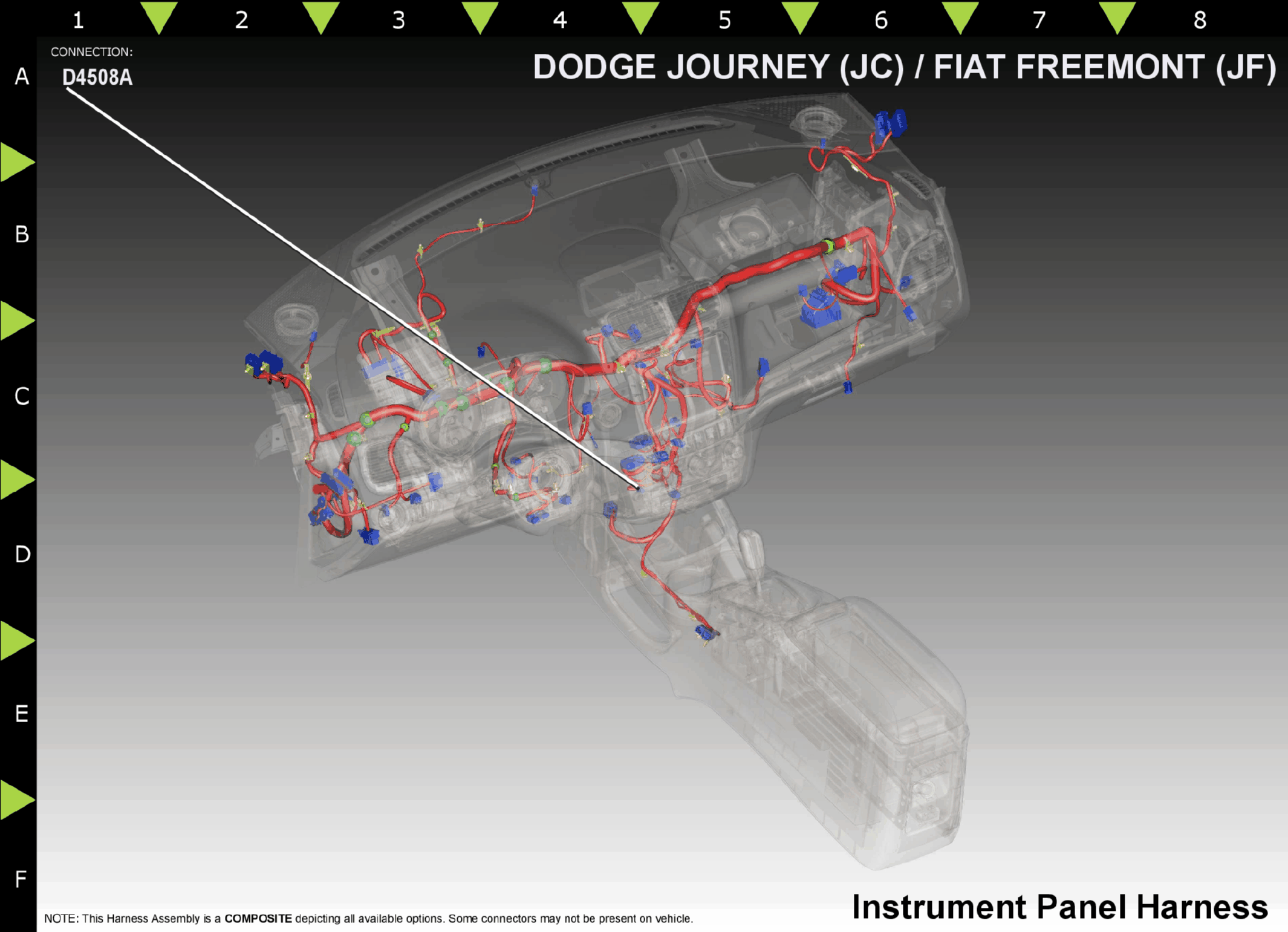

Fig 2: Lamp-Console-Center Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z907

GROUND

N/A

E12

OR/GY

PANEL LAMPS DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
