Lamp-Assembly-Right Front C4 (Export) (D6606D)

Harness-Family: Front_End_Lighting

Color: NATURAL

Gender: FEMALE

Part Number: MG610320

Part Description: SWP PLUG HOUSING 2P

Connector No: D6606D

Option: EXPORT

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Lamp-Assembly-Right Front C4 Connector End View (Export)

Courtesy of CHRYSLER

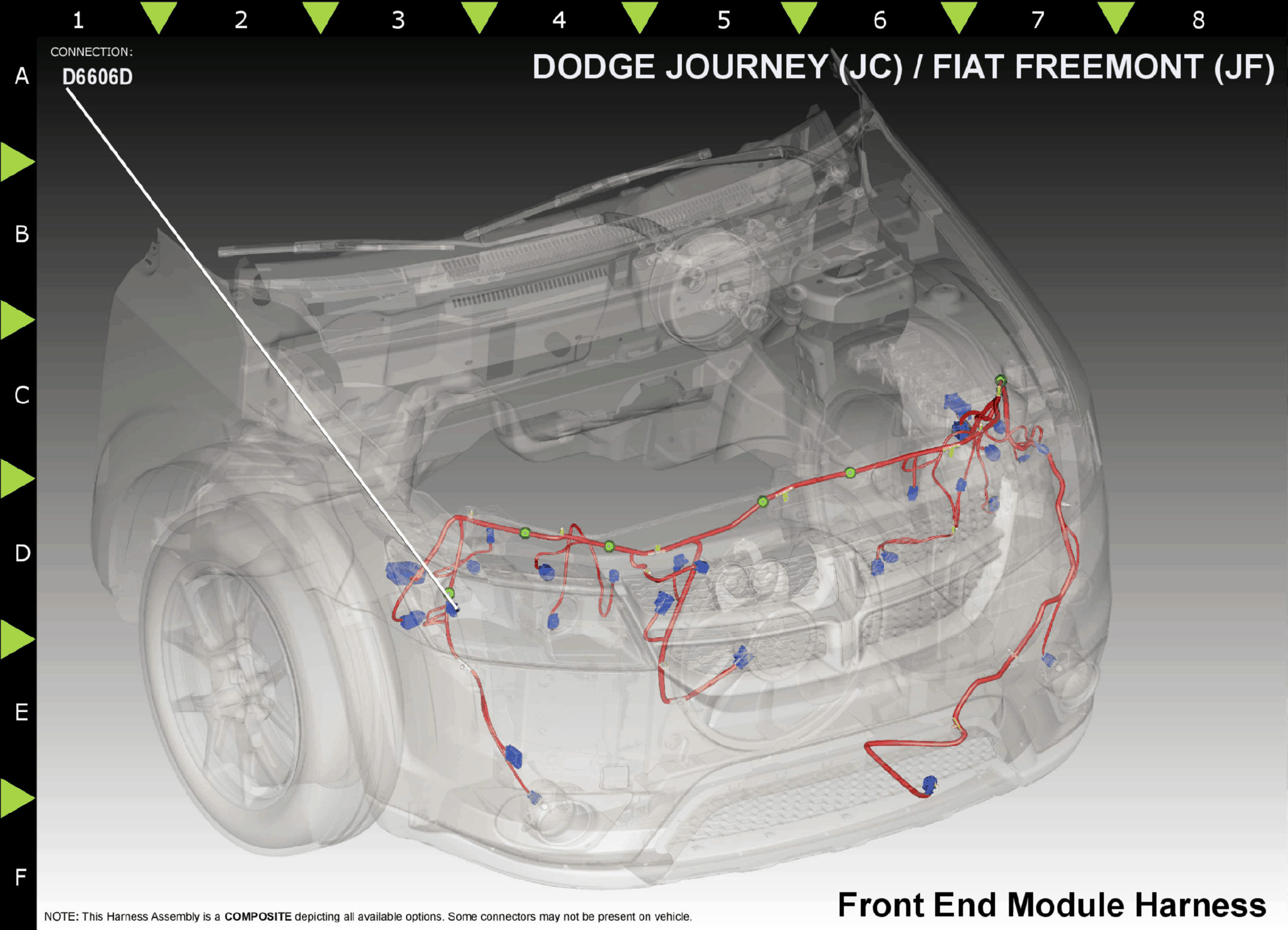

Fig 2: Lamp-Assembly-Right Front C4 Component Location (Export)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L78

WT/OR

RIGHT FRONT PARK LAMP DRIVER

N/A

Z904

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
