Lamp-Assembly-Right Front C2 (D6606B)

Harness-Family: Front_End_Lighting

Color: BLACK

Gender: FEMALE

Part Number: 12059183

Part Description: INS ASSY

Connector No: D6606B

Option: Standard

Repair Kit Part Number: 05102410AA

Cavity Count: 2

Fig 1: Lamp-Assembly-Right Front C2 Connector End View

Courtesy of CHRYSLER

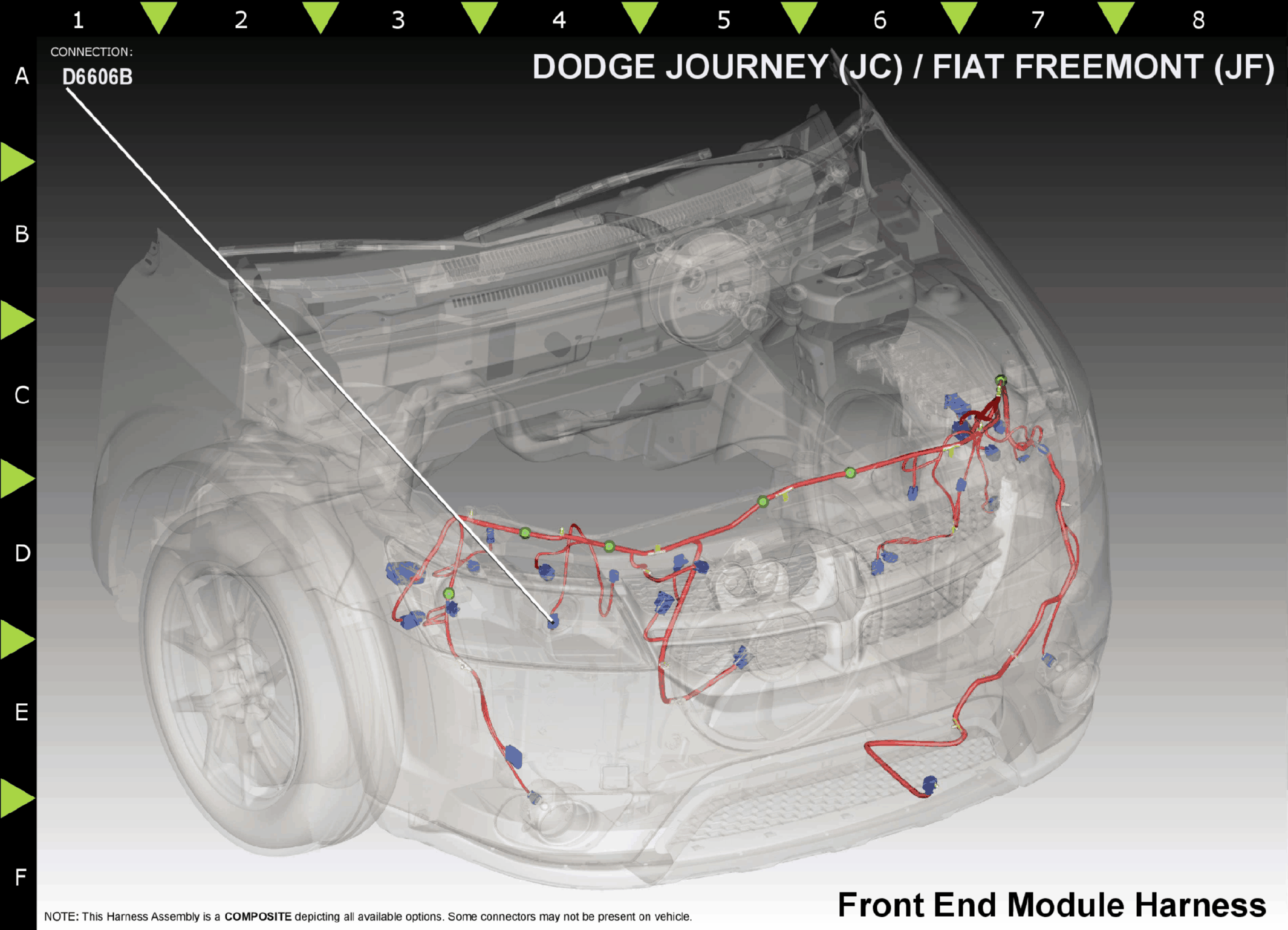

Fig 2: Lamp-Assembly-Right Front C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L34

WT/GY

RIGHT HIGH BEAM DRIVER

N/A

Z904

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
