Lamp-Assembly-Right Front C1 (Export) (D6606A)

Harness-Family: Front_End_Lighting

Color: YELLOW

Gender: FEMALE

Part Number: 10810649

Part Description: 2 F 2.8 TIMER YEL SLD

Connector No: D6606A

Option: EXPORT

Repair Kit Part Number: Not Available

Cavity Count: 2

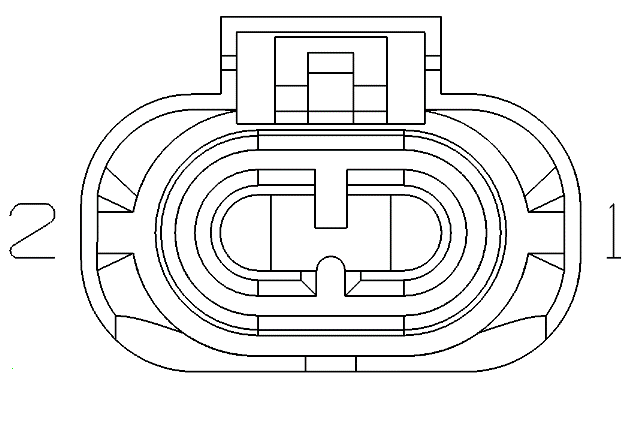

Fig 1: Lamp-Assembly-Right Front C1 Connector End View (Export)

Courtesy of CHRYSLER

Fig 2: Lamp-Assembly-Right Front C1 Component Location (Export)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L44

WT/TN

RIGHT LOW BEAM DRIVER

N/A

Z904

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
