Lamp-Assembly Tail-Right C1 (D6642A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 15491547

Part Description: Not Available

Connector No: D6642A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Lamp-Assembly Tail-Right C1 Connector End View
GCWD1091143Courtesy of CHRYSLER

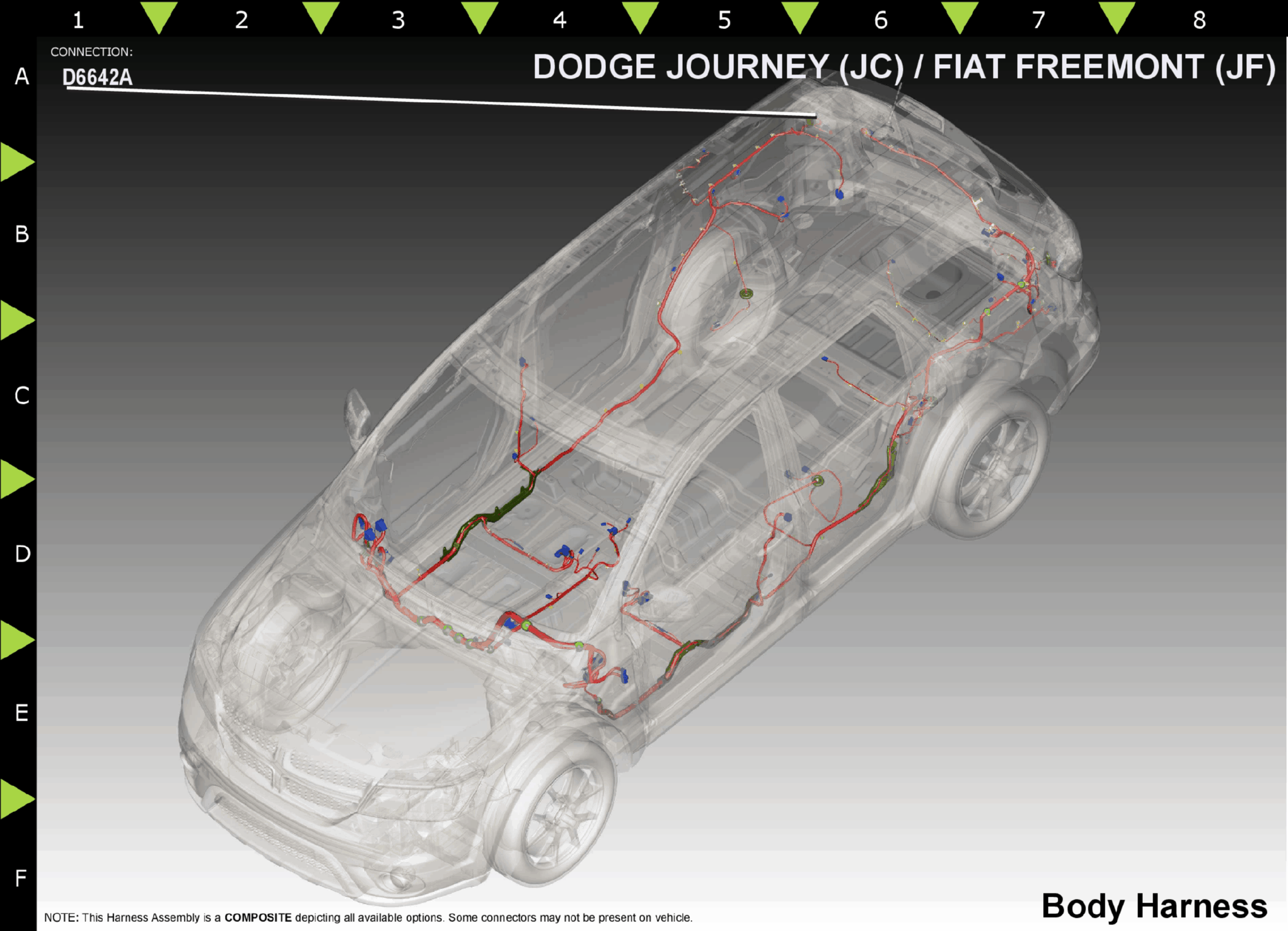

Fig 2: Lamp-Assembly Tail-Right C1 Component Location
GCWD1188313Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
C L54 WT/LG 20 RIGHT STOP LAMP DRIVER N/A
A L72 WT/OR 20 RIGHT REAR PARK LAMP DRIVER N/A
B Z914 BK/OR 20 GROUND N/A
1 L72 WT/OR 20 RIGHT REAR PARK LAMP DRIVER N/A
2 Z914 BK/OR 20 GROUND N/A
3 L54 WT/LG 20 RIGHT STOP LAMP DRIVER N/A
(1) Pins not listed are not used for this connector
