Lamp-Assembly Tail-Left C3 (D6641C)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 13511134

Part Description: GT 150 3P SEALED CONNECTOR ASSEMBLY

Connector No: D6641C

Option: Standard

Repair Kit Part Number: 68057317AA

Cavity Count: 3

Fig 1: Lamp-Assembly Tail-Left C3 Connector End View

Courtesy of CHRYSLER

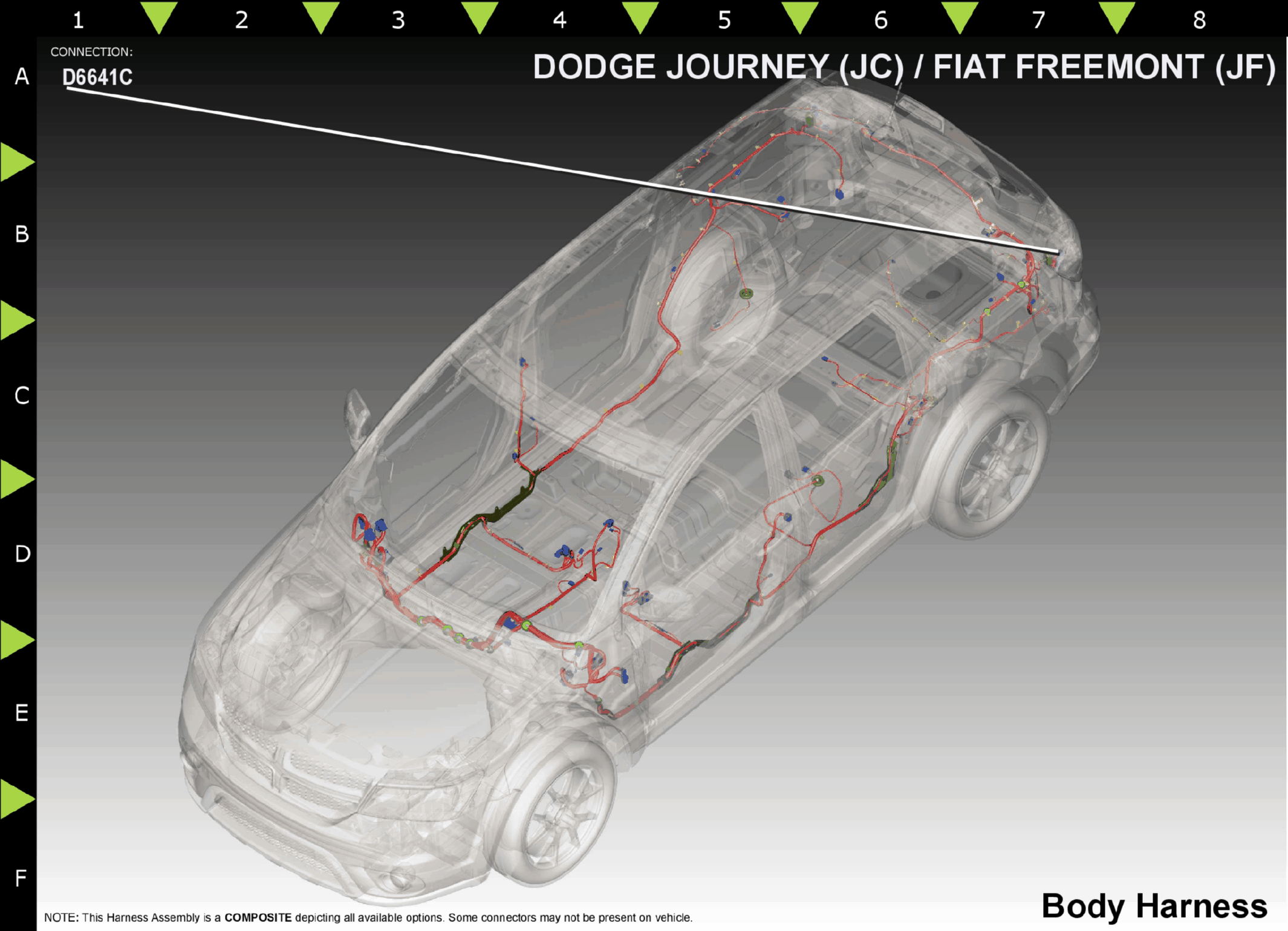

Fig 2: Lamp-Assembly Tail-Left C3 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z923

BK/YL

GROUND

N/A

L71

WT/GY

LEFT REAR PARK LAMP DRIVER

N/A

L52

LEFT STOP LAMP DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
