Lamp-Assembly Tail-Left C1 (D6641A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 15491547

Part Description: Not Available

Connector No: D6641A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Lamp-Assembly Tail-Left C1 Connector End View
GCWD1091143Courtesy of CHRYSLER

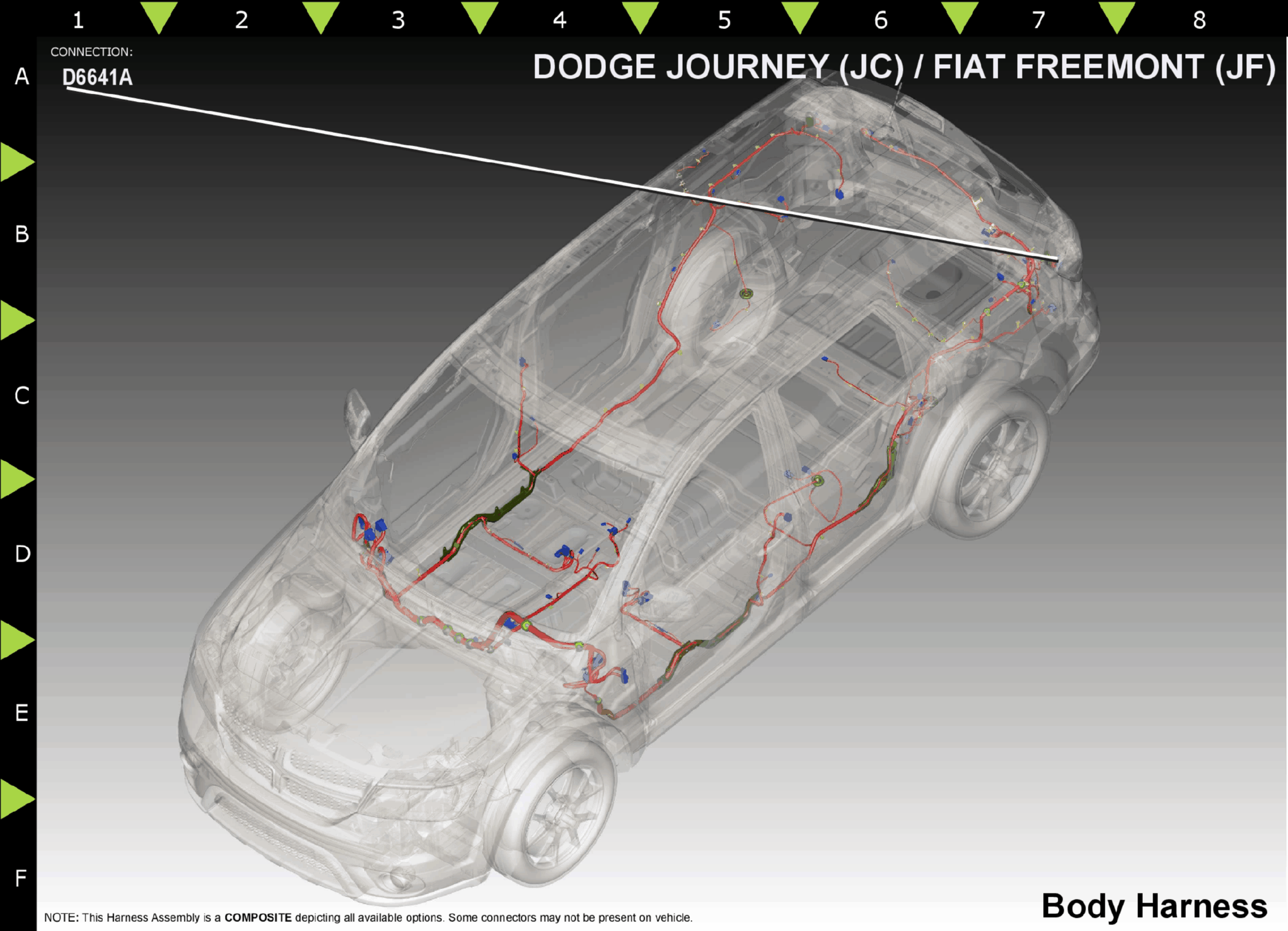

Fig 2: Lamp-Assembly Tail-Left C1 Component Location
GCWD1188286Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
C L52 WT 20 LEFT STOP LAMP DRIVER N/A
A L71 WT/GY 20 LEFT REAR PARK LAMP DRIVER N/A
B Z923 BK/YL 20 GROUND N/A
1 L71 WT/GY 20 LEFT REAR PARK LAMP DRIVER N/A
2 Z923 BK/YL 20 GROUND N/A
3 L52 WT 20 LEFT STOP LAMP DRIVER N/A
(1) Pins not listed are not used for this connector
