Injector-Fuel 5 (D5218)

Harness-Family: Injector

Color: BLACK

Gender: FEMALE

Part Number: 7283-6647-30

Part Description: CONNECTOR SUB ASSEMBLY (FUEL INJECTOR)

Connector No: D5218

Option: Standard

Repair Kit Part Number: 68148105AA

Cavity Count: 2

Fig 1: Injector-Fuel 5 Connector End View

Courtesy of CHRYSLER

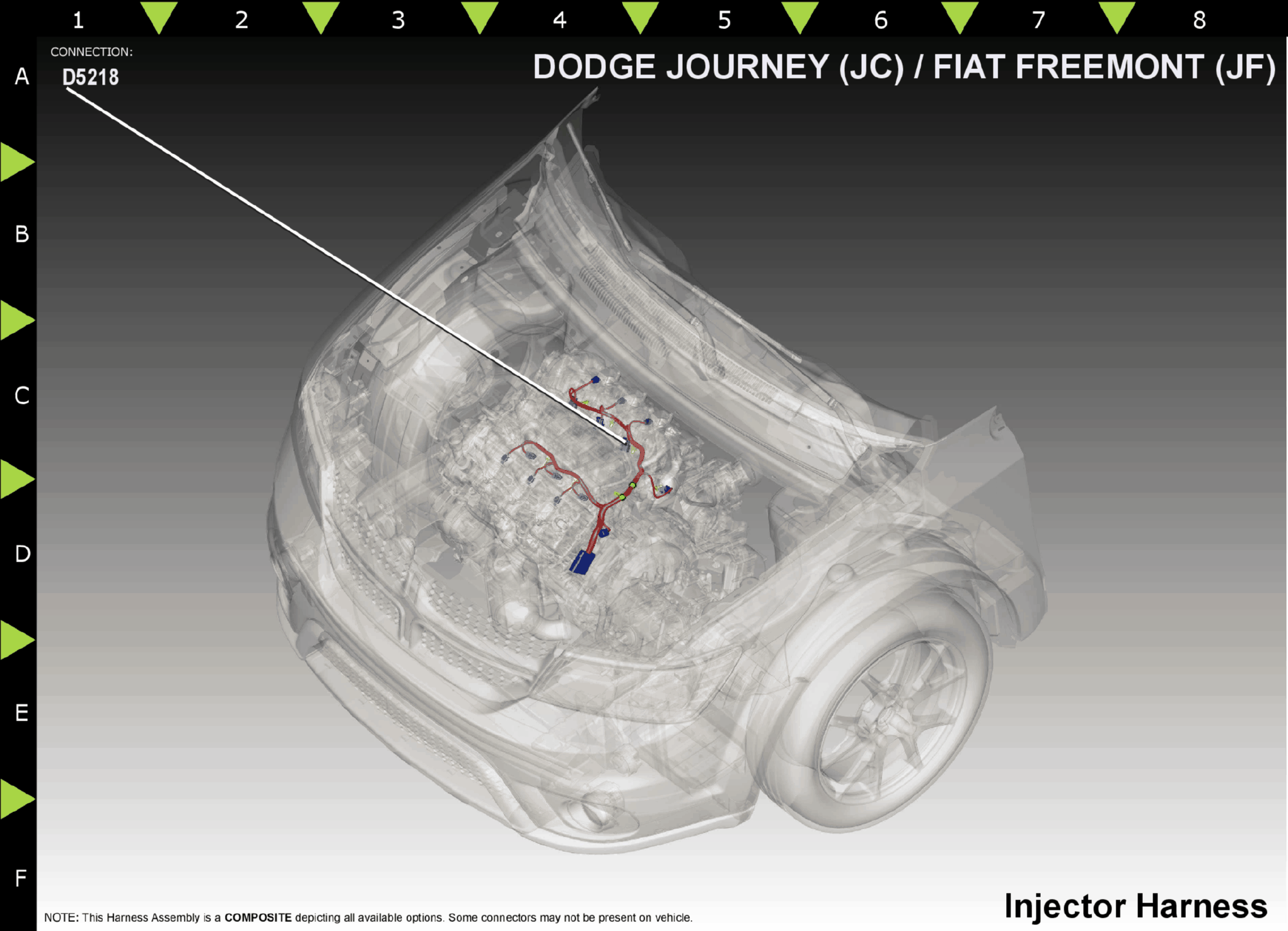

Fig 2: Injector-Fuel 5 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F342

BR/WT

ASD CONTROL OUTPUT

N/A

K38

BR/OR

INJECTOR CONTROL 5

N/A

⁽¹⁾	Pins not listed are not used for this connector
