Injector-Fuel 4 (2.4L) (D5217)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 34062-0005

Part Description: FUEL INJECTOR CONNECTOR W/ CPA -INDEX A

Connector No: D5217

Option: 2.4L

Repair Kit Part Number: 05183448AA

Cavity Count: 2

Fig 1: Injector-Fuel 4 Connector End View (2.4L)

Courtesy of CHRYSLER

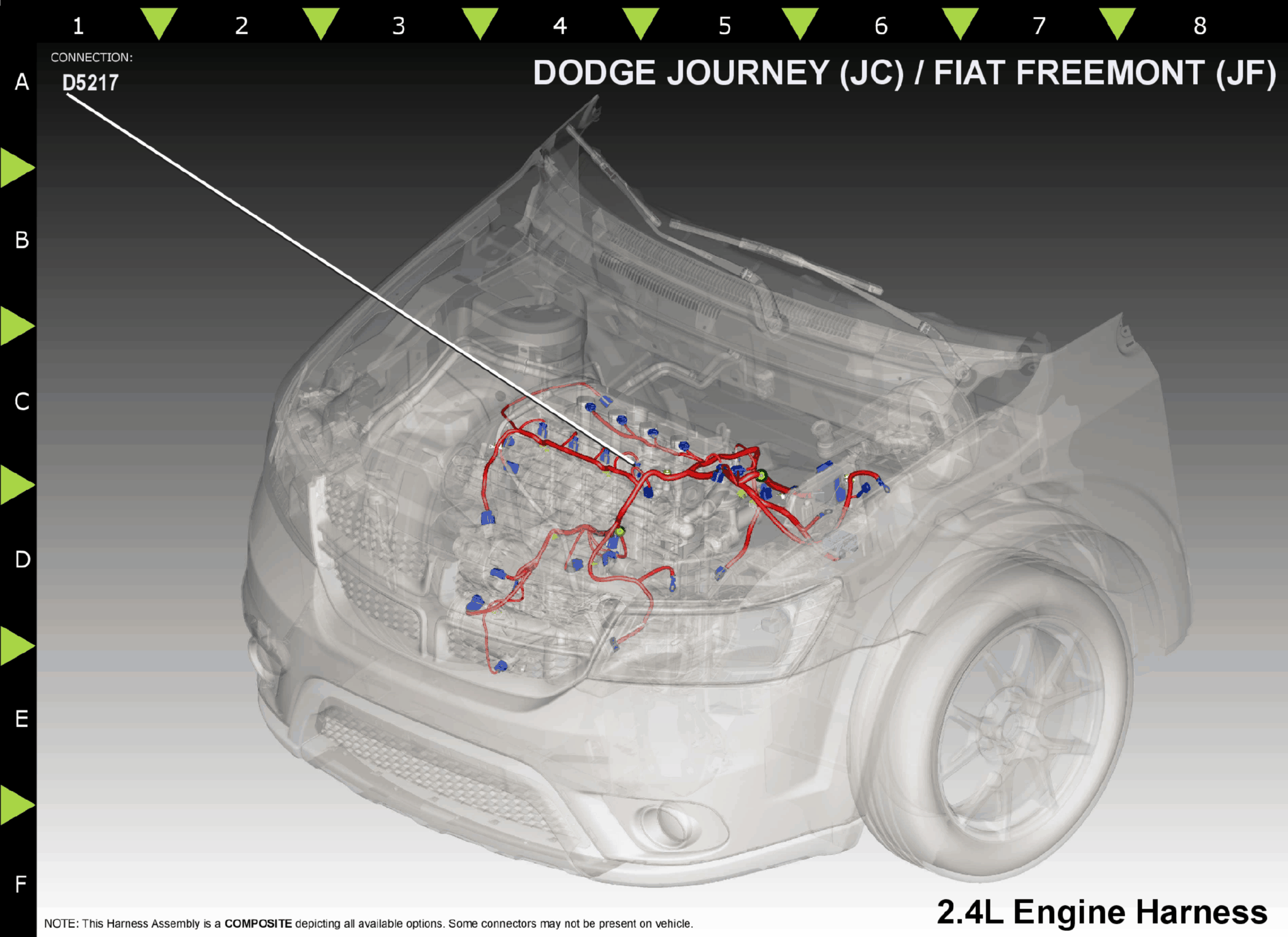

Fig 2: Injector-Fuel 4 Component Location (2.4L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F342

BR/WT

ASD CONTROL OUTPUT

N/A

K14

BR/TN

INJECTOR CONTROL 4

N/A

⁽¹⁾	Pins not listed are not used for this connector
