Hinge, Hood: Removal: Removal

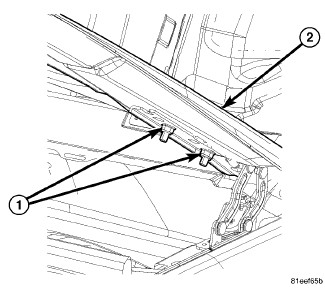

Fig 1: Hood And Hood Hinge

Courtesy of CHRYSLER GROUP, LLC

NOTE:

This procedure may require the aid of a helper.

Support the hood (2) on the side that requires the hinge replacement.
Mark the hinge attachment locations with a grease pencil or other suitable device to aid in installation.
For BUX models, disconnect the negative battery cable and wait at least two minutes.
For BUX models, remove the electronic pedestrian protection hood hing actuator. Refer to ACTUATOR, ELECTRONIC PEDESTRIAN PROTECTION HOOD HINGE, REMOVAL .
Remove the hood to hinge bolts (1).
Remove the bolts attaching the hood hinge to the load beam inner and remove the hinge from vehicle.
