Cluster Assembly

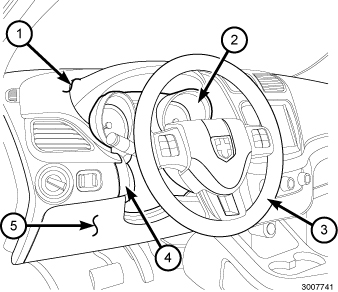

Fig 1: Steering Column Seal & Instrument Cluster

Courtesy of CHRYSLER GROUP, LLC

NOTE:

If the cluster has been replaced, the replacement cluster should be programmed with the correct mileage. Verify the correct mileage via WiTech/Scan Tool.

Position the instrument cluster assembly (2) in the instrument panel (1) and connect the electrical connector.
Align the upper retaining clips to the instrument panel; press firmly and evenly and engage the clips.
Install the two lower fasteners and tighten securely.
Position the steering column seal into place, and press firmly and evenly and engage the clips.
Connect the battery negative cable.
