Input Speed Sensor - Description

DESCRIPTION

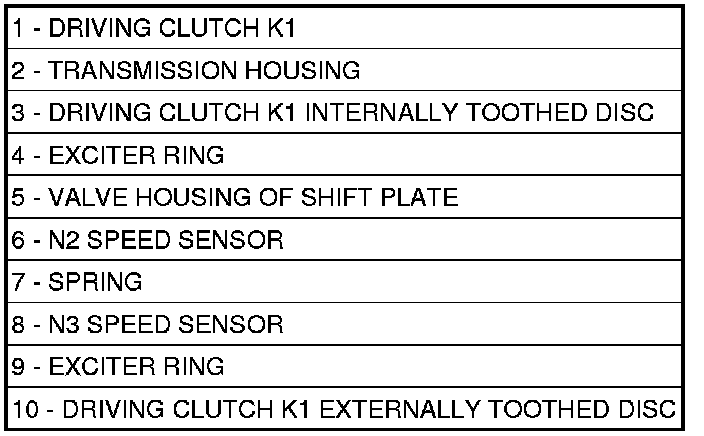

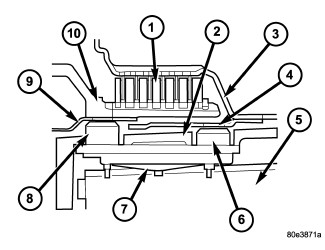

The speed sensors, N2 and N3, (6, 8)(Figure 1) are fixed to the shell of the electrohydraulic control unit's leadframe via contact blades. The speed sensors are pressed against the transmission housing (2) by a spring (7) which is held against the valve housing of the shift plate (5). This ensures a defined distance between the speed sensors and the exciter ring (4).
