Transmission Range Indicator Lamp - Removal

REMOVAL

1. Disconnect the battery negative cable.
2. Remove shift console trim ring and shift console trim panel.Floor Console - Removal




3. Using a trim stick or equivalent, gently pry up the shifter bezel lock tabs.

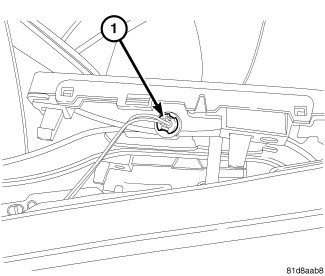

4. Grasp the bulb socket (1) and turn counter clockwise to remove from the shifter assembly.
5. Pull the bulb from the bulb socket.
