Front

FRONT

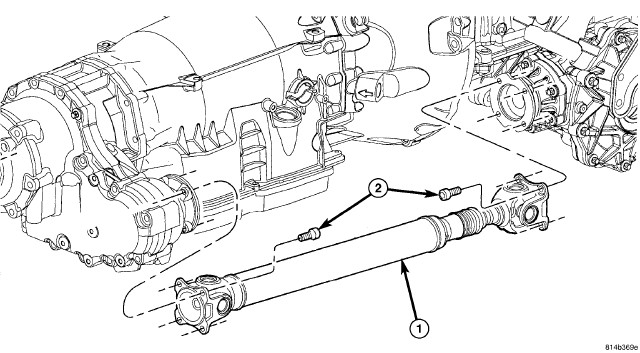

1. Install propeller shaft (1) into position.
2. Starting at transfer case end, align index marks placed upon removal and loose-install new propeller shaft-to-transfer case flange bolts.
3. Align index marks at front axle end of shaft, and loose-install new propeller shaft-to-front axle flange bolts.
4. Torque propeller shaft-to-transfer case and axle flange bolts (2) to 64 Nm (48 ft. lbs.).

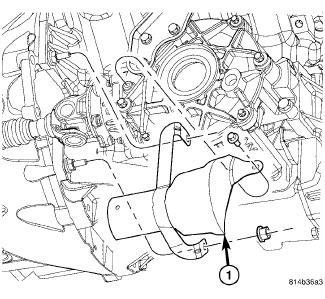

5. Install propeller shaft heat shield.
6. Lower vehicle.
