Electrohydraulic Control Unit - Removal

REMOVAL










1. Move selector lever to position "P".
2. Raise vehicle.

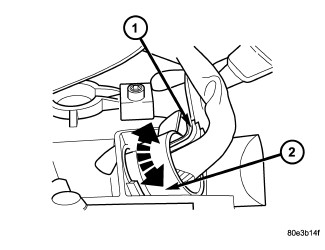

3. Disconnect 13-pin plug connector (1)(Figure 1). Turn bayonet lock of the adapter plug (2) anti-clockwise.

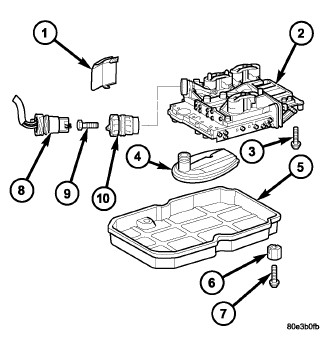

4. Loosen the adapter plug bolt (9)(Figure 2) and remove from the adapter plug (10) from the transmission housing.
5. Detach oil pan (5).
6. Remove oil filter (4).
7. Unscrew Torx(R) socket bolts (3) and remove electrohydraulic control module (2).
