Front

INSTALLATION

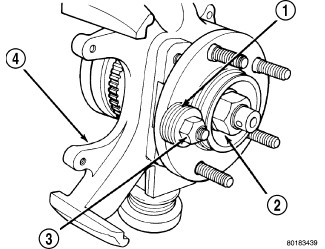

1. Install replacement wheel stud into flange of hub and bearing from rear. Install stack of washers (1) on wheel stud, then install a standard type wheel mounting (lug) nut (3) on stud with flat side of lug nut against washers.
2. Tighten nut (3), pulling wheel stud into hub flange. Once head of stud is fully seated against rear of hub flange, remove nut and washers from stud.
3. Install brake rotor and caliper. Brake Rotor - Installation
4. Install wheel and tire assembly . Tires And Wheels - Installation Tighten wheel mounting (lug) nuts in proper sequence to 150 Nm (110 ft. lbs.) (Police - 190 Nm (140 ft. lbs.)).
5. Lower vehicle.
6. Road test vehicle to ensure proper operation of the brakes.
