Active Damping Control Module - Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Remove the left side inner trunk fasteners and position the carpet aside.

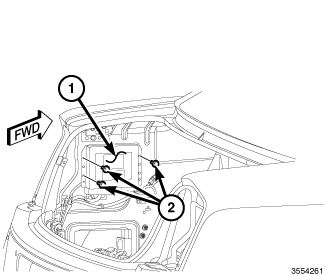

3. Disconnect the wire harness connectors and remove the three screws (2) from the Adaptive Damping Control Module (ADCM).
4. Release the integral latches that secure the ADCM (1) to the mounting bracket and slide the module upward to remove from the vehicle.
