Rear

REAR





1. Raise and support the vehicle.

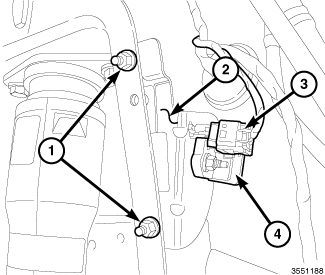

2. Release the terminal locking tab and disconnect the wiring harness connector (3) from the rear Active Damping Suspension (ADS) sensor (4).
3. Remove the two mounting nuts (1) securing the ADS bracket (2) to the shock tower.
4. Remove the bracket (2) from the vehicle with the ADS sensor attached.
