Active Damping Sensor - Description

DESCRIPTION

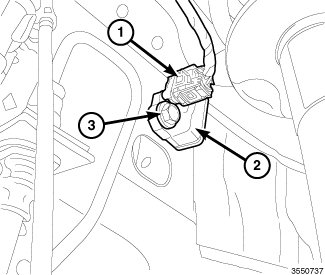

NOTE: Right front sensor shown.

There are three active damping sensors (2). The front sensors are located in each front wheel well next to the brake line junction. The rear sensor is mounted in the right rear wheel well on the shock tower. The sensors are 3 wire, 5V reference sensors wired directly to the Active Damping Control Module (ADCM).
