Front Suspension - Description

NON SRT

The front suspension for both All-Wheel-Drive (AWD) and Non SRT Rear-Wheel-Drive (RWD) vehicles is a long and short arm design.

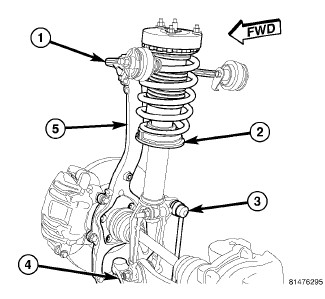

Each side of the AWD front suspension includes the following components:

- Hub And Bearing
- Knuckle (5)
- Lower Control Arm (4)
- Shock Assembly (2)
- Stabilizer Bar and Link (3)
- Upper Control Arm (1)

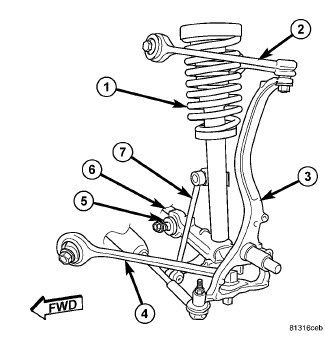

Each side of the Non SRT RWD front suspension includes the following components:

- Hub And Bearing
- Knuckle (3)
- Lower Control Arm (5)
- Shock Assembly (1)
- Stabilizer Bar and Link (7)
- Tension Strut (4)
- Upper Control Arm (2)
