Remote Start Antenna - Removal

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the headliner Headliner - Removal.

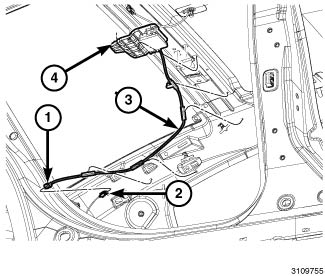

3. Disconnect the remote start antenna (1) from the RF Hub module jump wire (2) located on the driver side D-pillar.
4. Remove the remote start harness (3) from the D-pillar.
5. Gently pull down on the antenna mounting bracket to remove from the structural support rib.
6. Remove the remote start antenna from the mounting bracket.
