Battery Tray - Installation

INSTALLATION

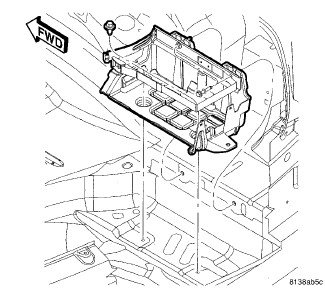

1. Position the battery tray in the vehicle and install the mounting fasteners.





2. Position the Power Distribution Center (PDC) onto the battery tray mounting tabs. Gently apply downward pressure on the PDC until it snaps into place.

3. Install the battery, Battery - Installation.
