Ambient Temperature Sensor - Removal

REMOVAL

1. Disconnect and isolate the battery negative cable.
2. Remove the belly pan, Belly Pan - Removal.

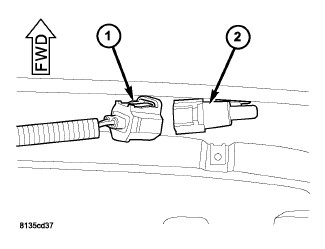

3. Disconnect the wire harness connector (1) from the ambient temperature sensor (2).





4. Remove the fastener that secures the ambient temperature sensor bracket to the front bumper beam.
5. Remove the ambient temperature sensor from the vehicle.
