In-Car Temperature Sensor - Description

DESCRIPTION

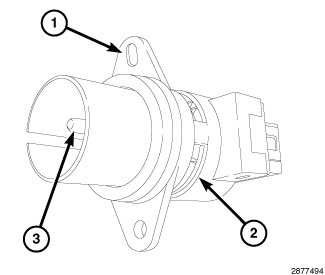

The in-car temperature sensor (1) is used in the Automatic Temperature Control (ATC) heating and A/C system only. The in-car temperature sensor consists of an aspirator motor (2) and a temperature thermistor (3). The in-car temperature sensor sends a resistance signal to the ATC A/C heater module and is attached to the instrument panel, below the steering column.
