Front

ALL-WHEEL-DRIVE

1. Raise and support vehicle. Maintenance





2. Remove sensor cable routing clip (2) from brake hose bracket (3).






NOTE: To release sensor connector from body wiring harness connector (1) in following step, move retaining clip (2) as indicated here, then pull sensor connector (3) outward.






3. Remove sensor connector (1) from body wiring harness connector (4).

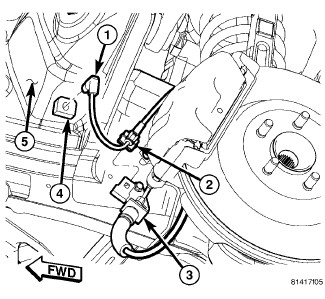

4. Remove screw (1) fastening wheel speed sensor (2) to knuckle (4). Pull sensor head out of knuckle.
5. Remove wheel speed sensor cable routing clip (3) from knuckle (4).
6. Remove wheel speed sensor (2).
