Fuel Door Switch - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the trim panel from the inside of the driver side front door. Front Door Trim Panel - Removal.

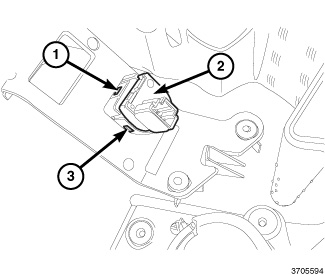

3. Working from the back side of the door trim panel, disengage the latch tabs (1 and 3) that secure the fuel door release switch (2) to the receptacle integral to the trim panel reinforcement.
4. Remove the switch from the door trim panel.
