Camshaft Position Sensor - Description






5.7L/6.4L

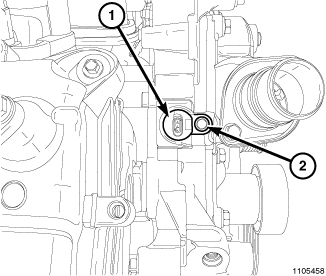

The Camshaft Position Sensor (CMP) (1) is located in the timing cover near the thermostat housing.
