Aluminum Wheel

TIRE AND WHEEL ASSEMBLY (ALUMINUM WHEEL)

1. Raise vehicle so tire and wheel assembly clears ground level.

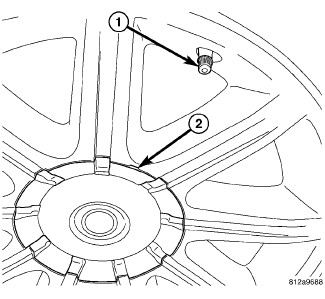

2. If vehicle is equipped with wheel center caps covering wheel nuts, remove cap with appropriate removal tool utilizing notch formed into wheel (2) near valve stem (1). Use care not to damage wheel coating.





3. Remove five wheel mounting (lug) nuts (3) from studs.
4. Remove tire and wheel assembly (1) from hub.
