Air Inlet Housing

HOUSING-AIR INLET

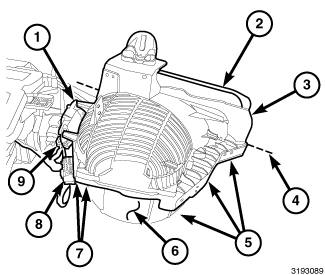

NOTE: LHD model shown. RHD model similar.





1. Position the air inlet housing (3) onto the HVAC housing (6).

CAUTION: Make sure that the recirculation-air door pivot shaft is properly seated in the pivot seats located on the top of the HVAC housing.

2. Install the five screws (5 and 7) that secure the air inlet housing to the HVAC housing. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Inspect the foam seal (2), especially along the parting line (4). If the seal is deformed or damaged, it must be replaced.
4. Connect the HVAC wire harness connector (9) to the recirculation door actuator (1).
5. Engage the HVAC wire harness connector (8) to the air inlet housing.
6. Install the A/C heater module A/C And Heater Control Module - Installation.
7. Install the HVAC housing assembly HVAC Housing - Installation.
